Reassembly [08/2015 - ]

NOTE:

When reassembling the combination meter sub-assembly, eliminate static electricity by touching the vehicle body to prevent components from being damaged.

INSTALL METER CIRCUIT PLATE (w/o Multi-information Display)
1. Install the meter circuit plate to the No. 1 combination meter case.

  Fig 1: Installing Meter Circuit Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COMBINATION METER COVER
1. Engage the 4 claws.

  Fig 2: Identifying No. 1 Combination Meter Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 combination meter cover with the 8 screws.

  Fig 3: Identifying No. 1 Combination Meter Cover Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 METER LENS (w/o Multi-information Display)
1. Engage the 3 guides and claw to install the No. 4 meter lens.

  Fig 4: Identifying Claws And No. 4 Combination Meter Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 METER LENS (w/o Multi-information Display)
1. Engage the 2 guides to install the No. 3 meter lens.

  Fig 5: Identifying Guides And No. 3 Combination Meter Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 METER LENS (w/o Multi-information Display)
1. Engage the 3 guides to install the No. 2 meter lens.

  Fig 6: Identifying Guides And No. 2 Combination Meter Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 METER LENS
1. w/o Multi-information Display
  1. Engage the 3 guides to install the No. 1 meter lens.

    Fig 7: Identifying Guides And No. 1 Combination Meter Lens
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Multi-information Display
  1. Engage the 2 guides to install the No. 1 meter lens.

    Fig 8: Identifying Guides And No. 1 Combination Meter Lens
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

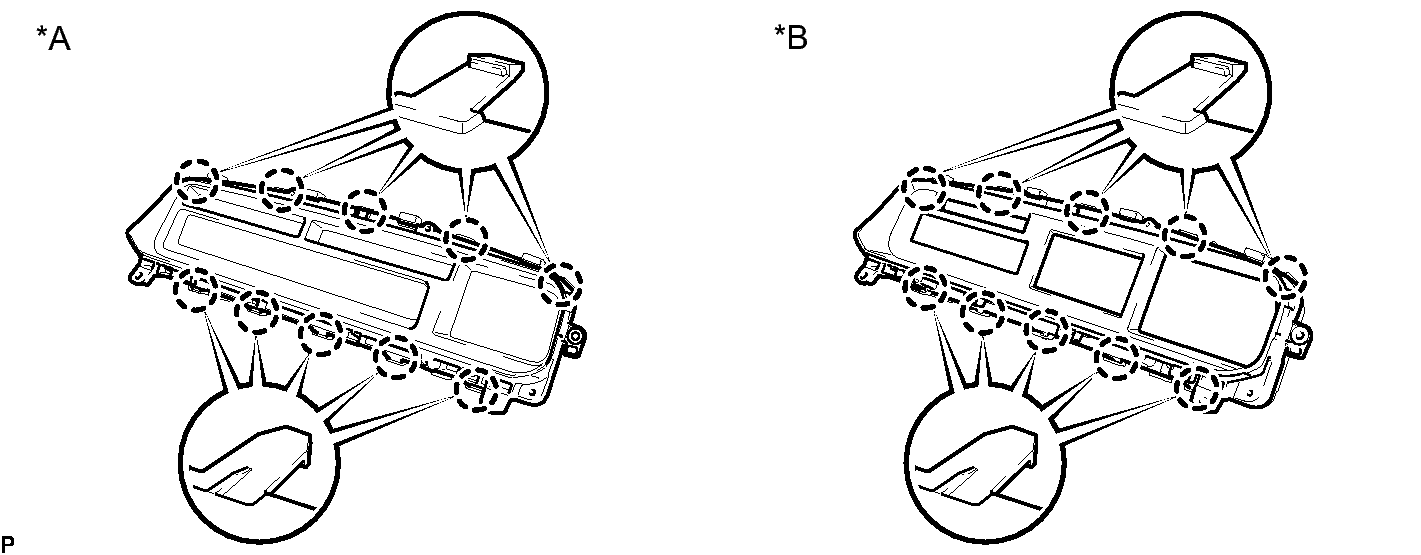

INSTALL NO. 2 COMBINATION METER COVER

Engage the 10 claws.

Fig 9: Identifying Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

w/o Multi-information Display

w/ Multi-information Display

Install the No. 2 combination meter cover with the 2 screws.

Fig 10: Identifying Screws

TEXT IN ILLUSTRATION

w/o Multi-information Display

w/ Multi-information Display

INSTALL COMBINATION METER GLASS
1. Engage the 8 claws.

  Fig 11: Identifying Combination Meter Glass Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter glass with the 2 screws.

  Fig 12: Identifying Combination Meter Glass Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
