System Diagram [08/2015 - ]

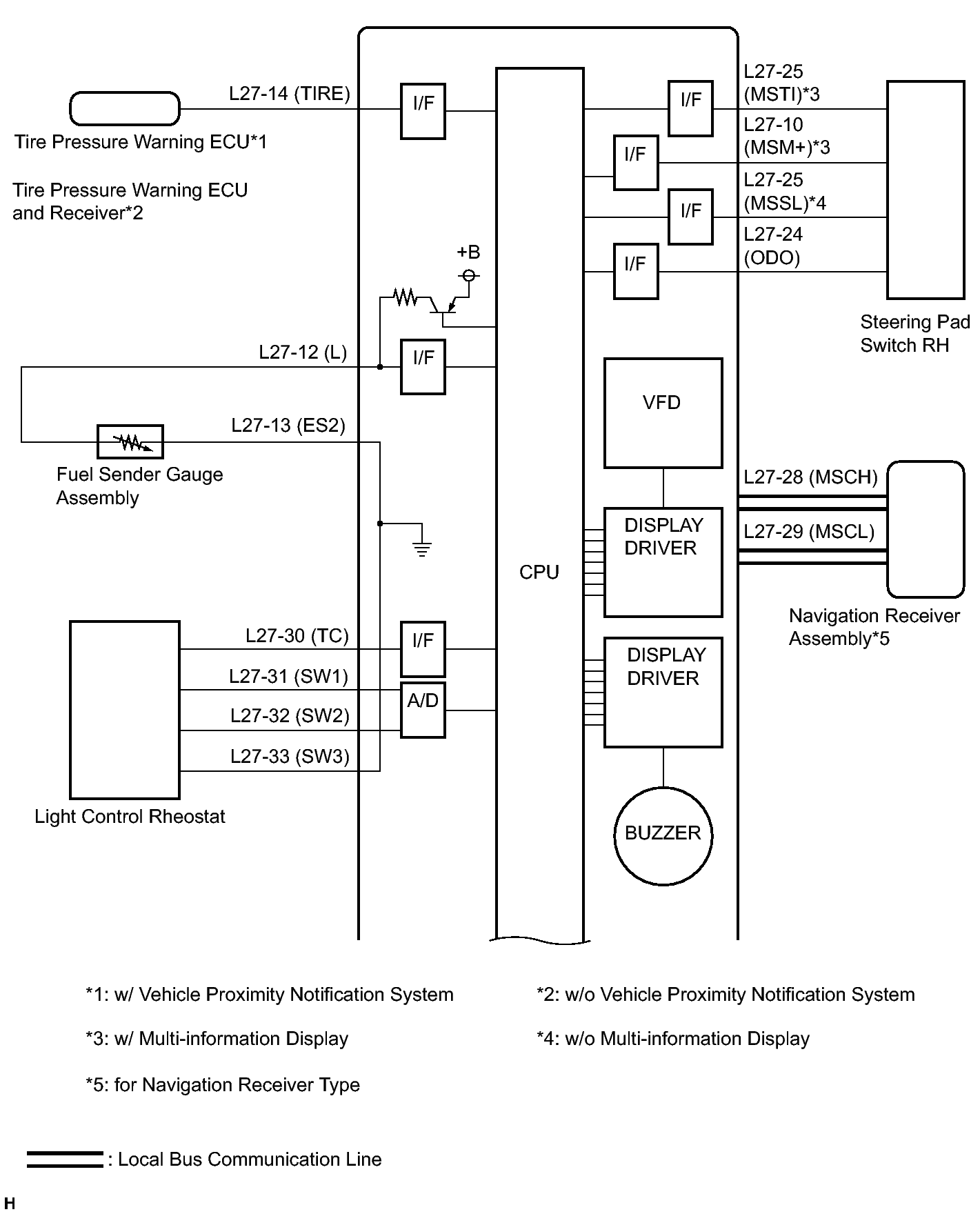

Fig 1: Meter / Gauge System Diagram (1 Of 3)
GTY472756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

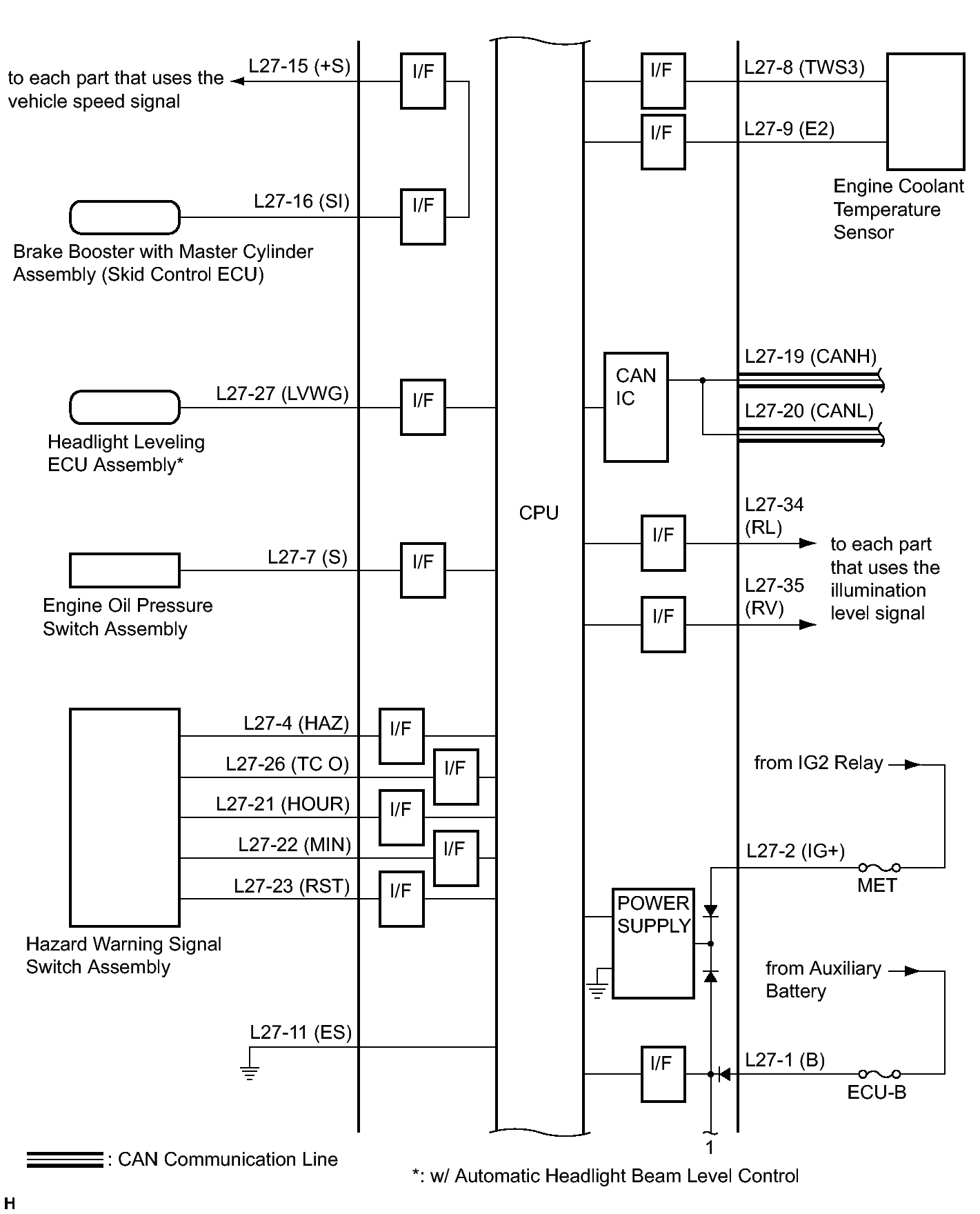

Fig 2: Meter / Gauge System Diagram (2 Of 3)
GTY482567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

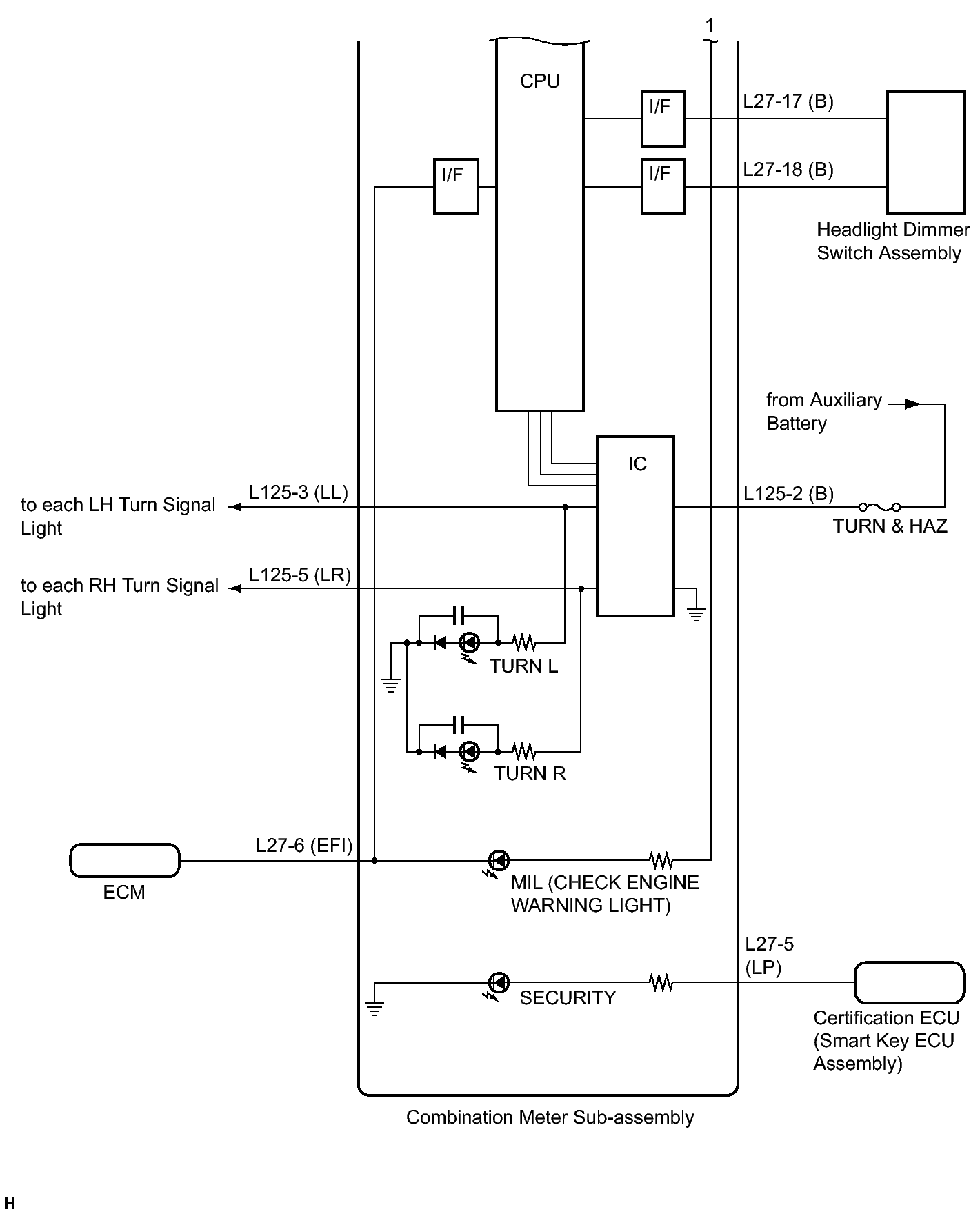

Fig 3: Meter / Gauge System Diagram (3 Of 3)
GTY478820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
