Components Location [08/2015 - ]: Illustration

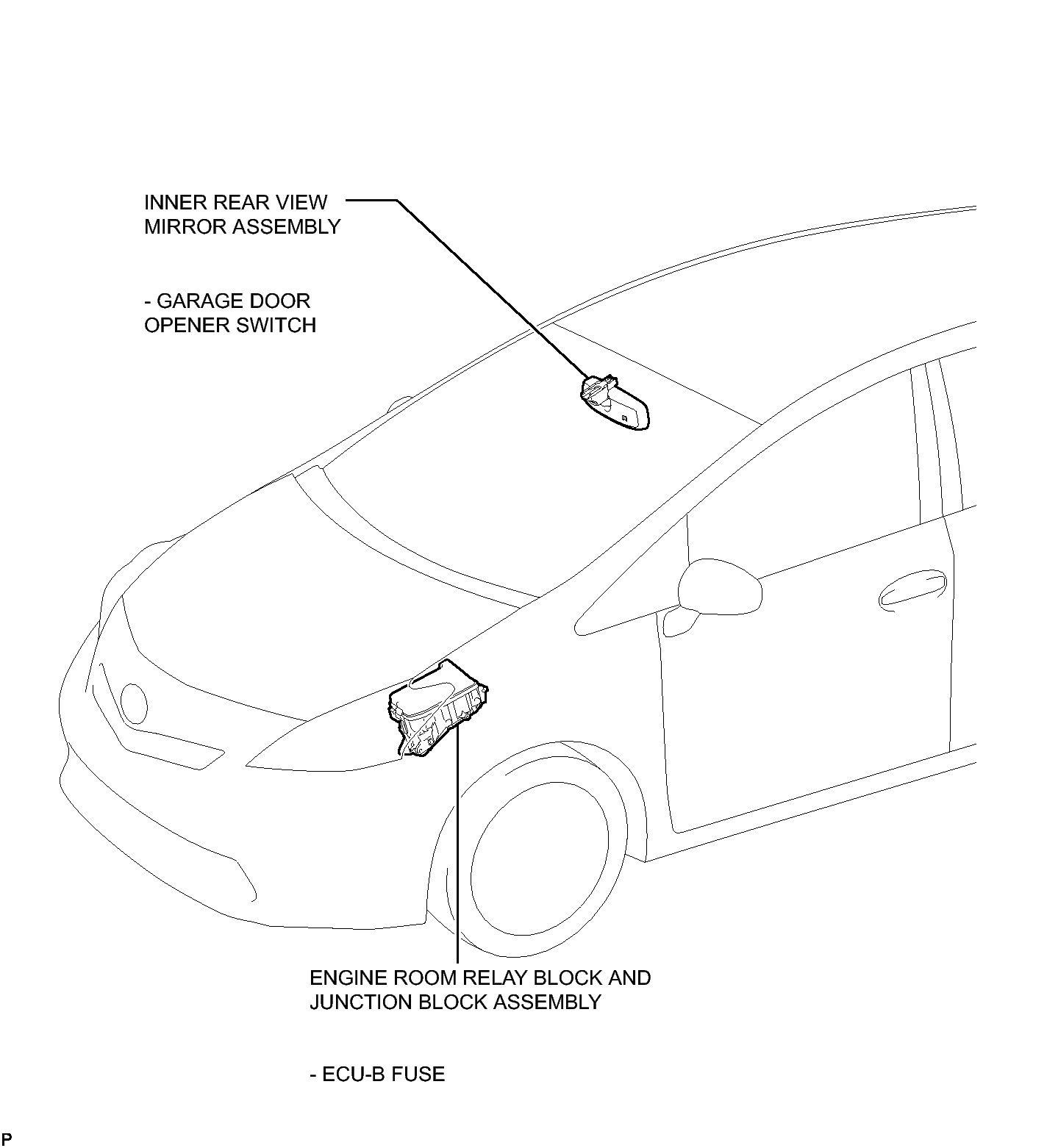

Fig 1: Garage Door Opener System Components Location

GTY341188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
