Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2018]

  3. REMOVE REAR MOTOR UNDER COVER LH

    Refer to PROCEDURE - Step 7 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2018]

  4. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

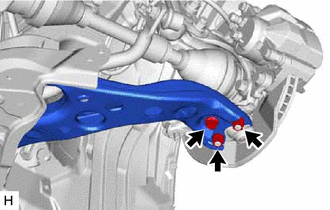

    1. Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly LH from the front lower ball joint assembly LH.
      GTY574711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

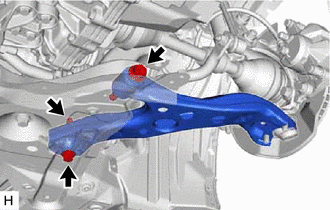

    1. Remove the 2 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front suspension crossmember sub-assembly.
      GTY574712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
