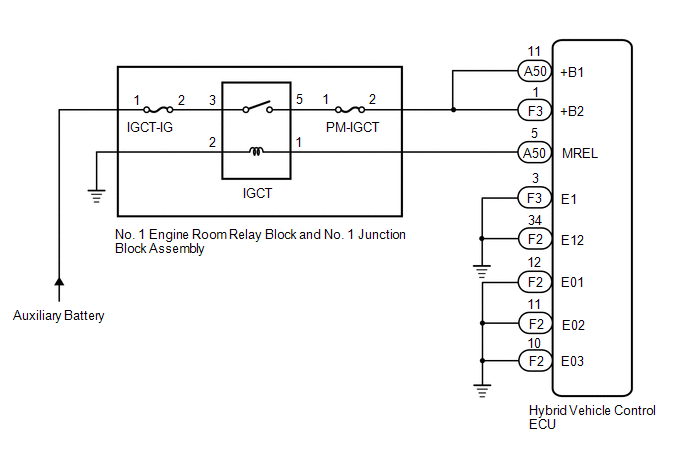

ECU Power Source Circuit [11/2015 - ]: Wiring Diagram

GTY557621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
