DTC B1653: Driver Side Seat Position Sensor [04/2018 -]: Procedure
- CHECK CONNECTION OF CONNECTORS
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Check that the connectors are properly connected to the airbag ECU assembly, front seat inner belt assembly LH and seat position airbag sensor.
OK
The connectors are properly connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK CONNECTORS
- Disconnect the connectors from the airbag ECU assembly, front seat inner belt assembly LH and seat position airbag sensor.
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
Result
Proceed to OK NG
Result:
NG
REPLACE FLOOR WIRE OR FRONT SEAT INNER BELT ASSEMBLY LH
Result:
OK
See step 3
- CHECK WIRE HARNESS
- Connect the connectors to the front seat inner belt assembly LH and floor wire.

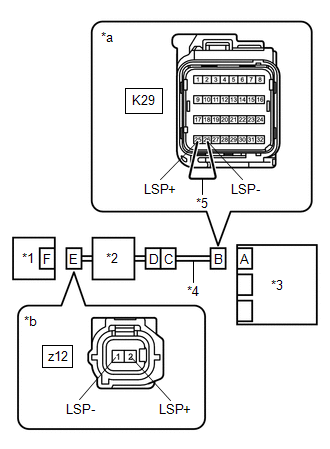

*1 Seat Position Airbag Sensor *2 Front Seat Inner Belt Assembly LH *3 Airbag ECU Assembly *4 Floor Wire *5 Service Wire *a Front view of wire harness connector
(to Airbag ECU Assembly)*b Front view of wire harness connector
(to Seat Position Airbag Sensor) - Connect the cable to the negative (-) battery terminal.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition z12-2 (LSP+) - Body ground Engine switch on (IG) Below 1 V z12-1 (LSP-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Using a service wire, connect terminals 25 (LSP+) and 26 (LSP-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z12-2 (LSP+) - z12-1 (LSP-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z12-2 (LSP+) - z12-1 (LSP-) Always 1 MΩ or higher z12-2 (LSP+) - Body ground Always 1 MΩ or higher z12-1 (LSP-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
See step 6
Result:
OK
See step 4
- Connect the connectors to the front seat inner belt assembly LH and floor wire.
- CHECK DTC
- Connect the connectors to the airbag ECU assembly and seat position airbag sensor.
*1 Seat Position Airbag Sensor *2 Front Seat Inner Belt Assembly LH *3 Airbag ECU Assembly - Connect the cable to the negative (-) battery terminal.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1653 is not output.
HINT:
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
Result
Result OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [04/2018 -]
Result:
NG
See step 5
- Connect the connectors to the airbag ECU assembly and seat position airbag sensor.
- CHECK SEAT POSITION AIRBAG SENSOR
- Turn the engine switch off.
*1 Seat Position Airbag Sensor *2 Front Seat Inner Belt Assembly LH *3 Airbag ECU Assembly - Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Replace the seat position airbag sensor with a known good one.
Refer to REMOVAL [04/2018 - 08/2021] , or refer to REMOVAL [08/2021 -]
HINT:
Perform the following inspection using known good parts from another vehicle if possible.
- Connect the cable to the negative (-) battery terminal.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1653 is not output.
HINT:
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Restore the seat position airbag sensor that was installed for testing to its original location.
Refer to REMOVAL [04/2018 - 08/2021] , or refer to REMOVAL [08/2021 -]
Result
Proceed to OK NG
Result:
OK
REPLACE SEAT POSITION AIRBAG SENSOR. Refer to REMOVAL [04/2018 - 08/2021] , or refer to REMOVAL [08/2021 -]
Result:
NG
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 -]
- Turn the engine switch off.
- CHECK FLOOR WIRE
- Disconnect the floor wire connector from the front seat inner belt assembly LH.

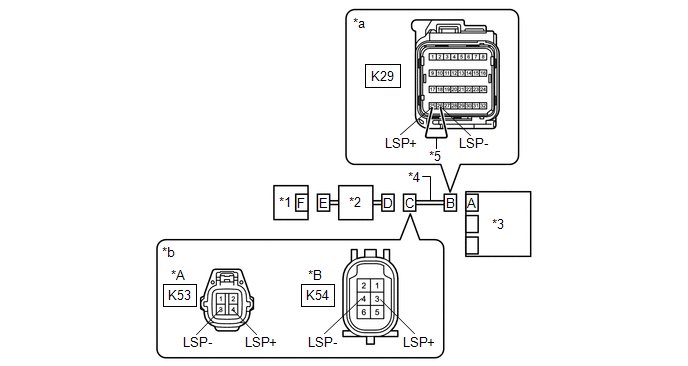

*A w/o Seat Position Memory System *B w/ Seat Position Memory System *1 Seat Position Airbag Sensor *2 Front Seat Inner Belt Assembly LH *3 Airbag ECU Assembly *4 Floor Wire *5 Service Wire - - *a Front view of wire harness connector
(to Airbag ECU Assembly)*b Front view of wire harness connector
(to Front Seat Inner Belt Assembly LH) - Connect the cable to the negative (-) battery terminal.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
W/O SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K53-4 (LSP+) - Body ground Engine switch on (IG) Below 1 V K53-3 (LSP-) - Body ground Engine switch on (IG) Below 1 V W/ SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K54-3 (LSP+) - Body ground Engine switch on (IG) Below 1 V K54-4 (LSP-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Using a service wire, connect terminals 25 (LSP+) and 26 (LSP-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/O SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K53-4 (LSP+) - K53-3 (LSP-) Always Below 1 Ω W/ SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K54-3 (LSP+) - K54-4 (LSP-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/O SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K53-4 (LSP+) - K53-3 (LSP-) Always 1 MΩ or higher K53-4 (LSP+) - Body ground Always 1 MΩ or higher K53-3 (LSP-) - Body ground Always 1 MΩ or higher W/ SEAT POSITION MEMORY SYSTEM:Tester Connection Condition Specified Condition K54-3 (LSP+) - K54-4 (LSP-) Always 1 MΩ or higher K54-3 (LSP+) - Body ground Always 1 MΩ or higher K54-4 (LSP-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE FRONT SEAT INNER BELT ASSEMBLY LH. Refer to REMOVAL [04/2018 - 08/2021] , or refer to REMOVAL [08/2021 -]
Result:
NG
REPLACE FLOOR WIRE
- Disconnect the floor wire connector from the front seat inner belt assembly LH.
