Meter / Gauge / Display - Diagnostics - Introduction (1 Of 6)
>>
Meter / Gauge System
>>
System Diagram [11/2017 - 12/2018]
>>
System Diagram [11/2017 - 12/2018]
System Diagram [11/2017 - 12/2018]

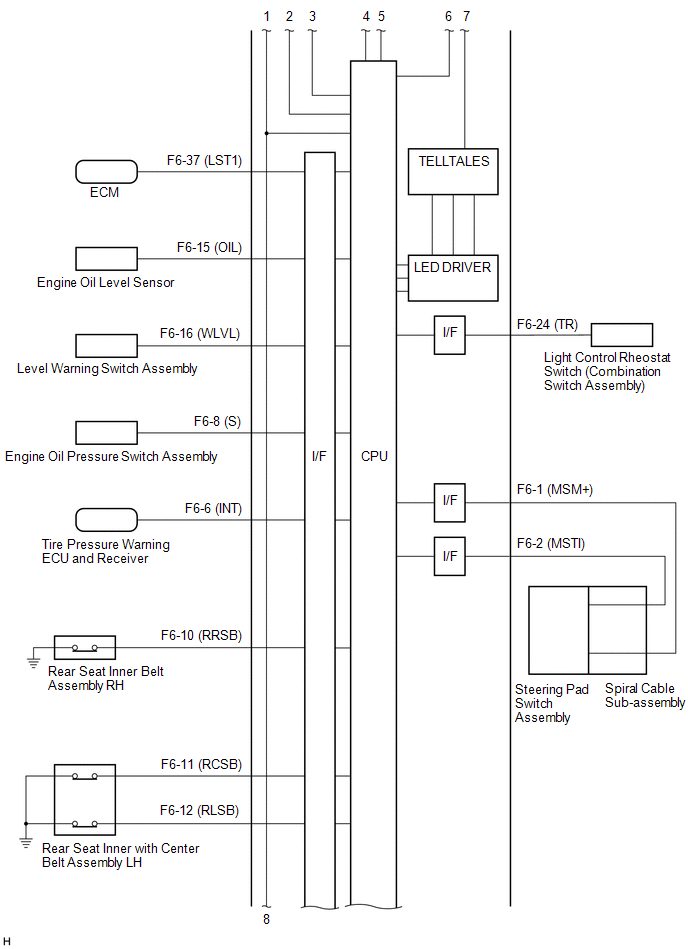

Fig 1: Meter/Gauge System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Meter/Gauge System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Meter/Gauge System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
