Installation [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR CONDITIONING THERMISTOR ASSEMBLY
    1. Temporarily install the air conditioning thermistor assembly to the windshield glass as shown in the illustration.
      GTY880542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      Lock
      Install in this Direction
    2. Push in the stopper to install the air conditioning thermistor assembly as shown in the illustration.
    3. Connect the connector.
  2. INSTALL SENSOR COVER

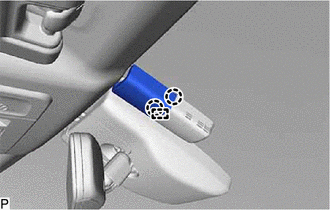

    1. Engage the guide and 2 claws to install the sensor cover.
      GTY924763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
