Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control

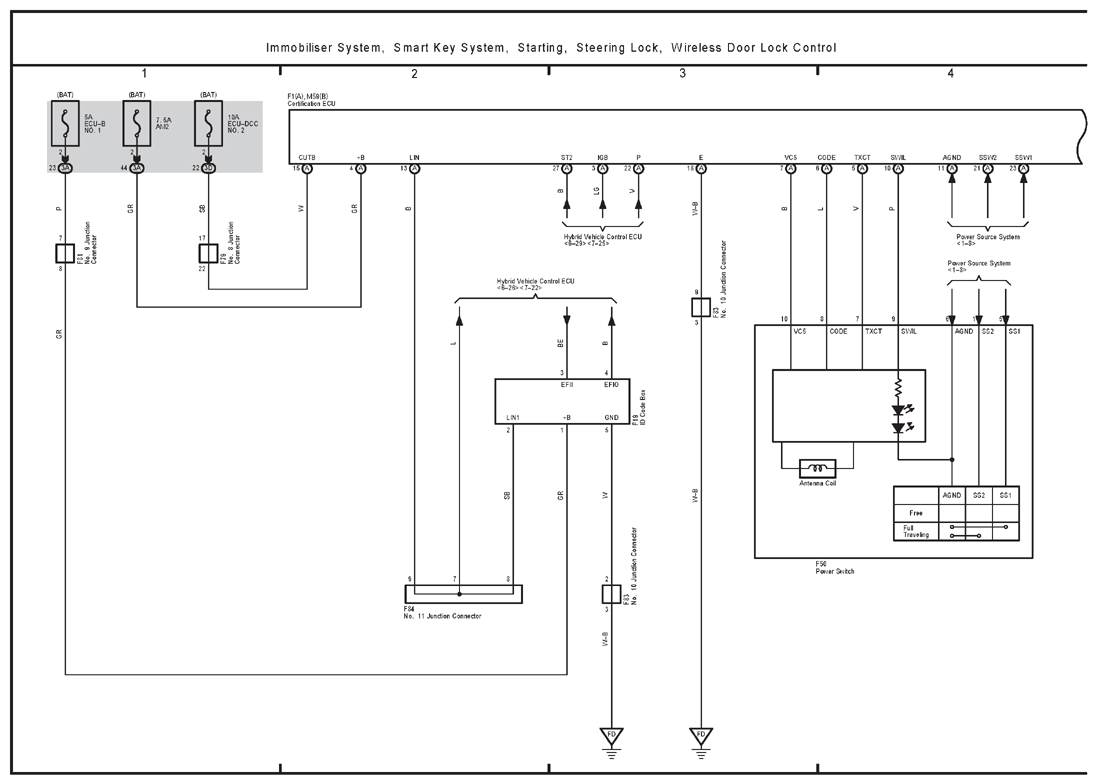

G12231238

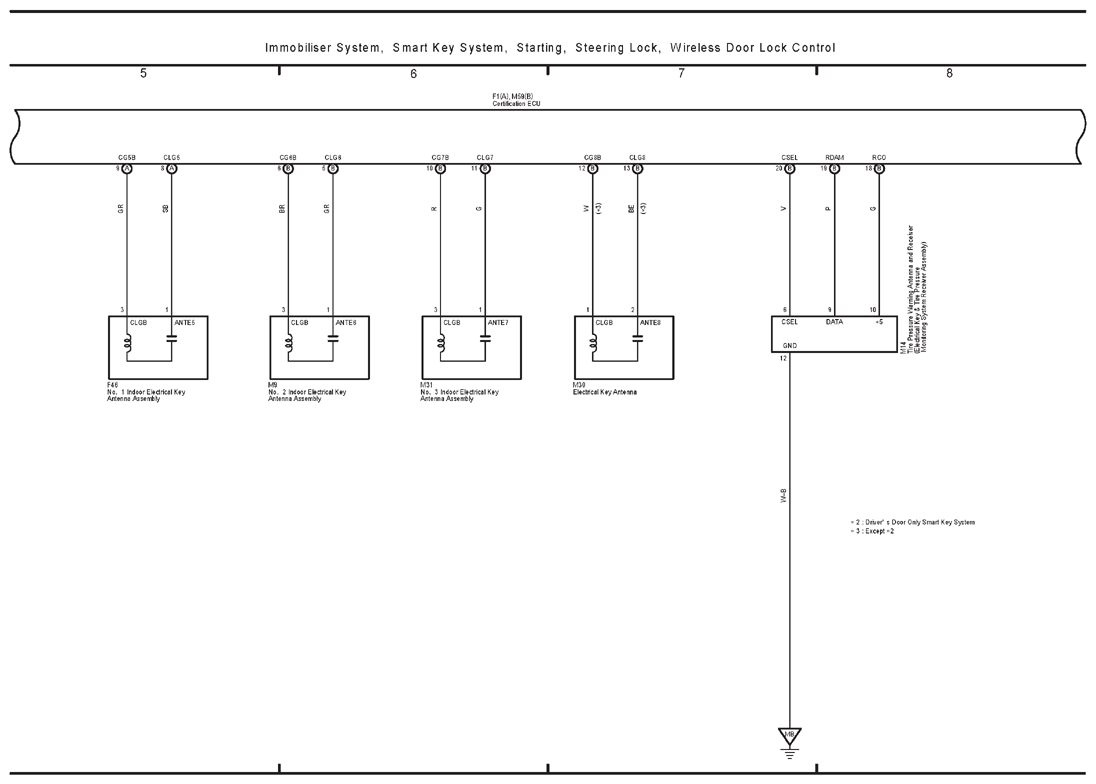

G12231239

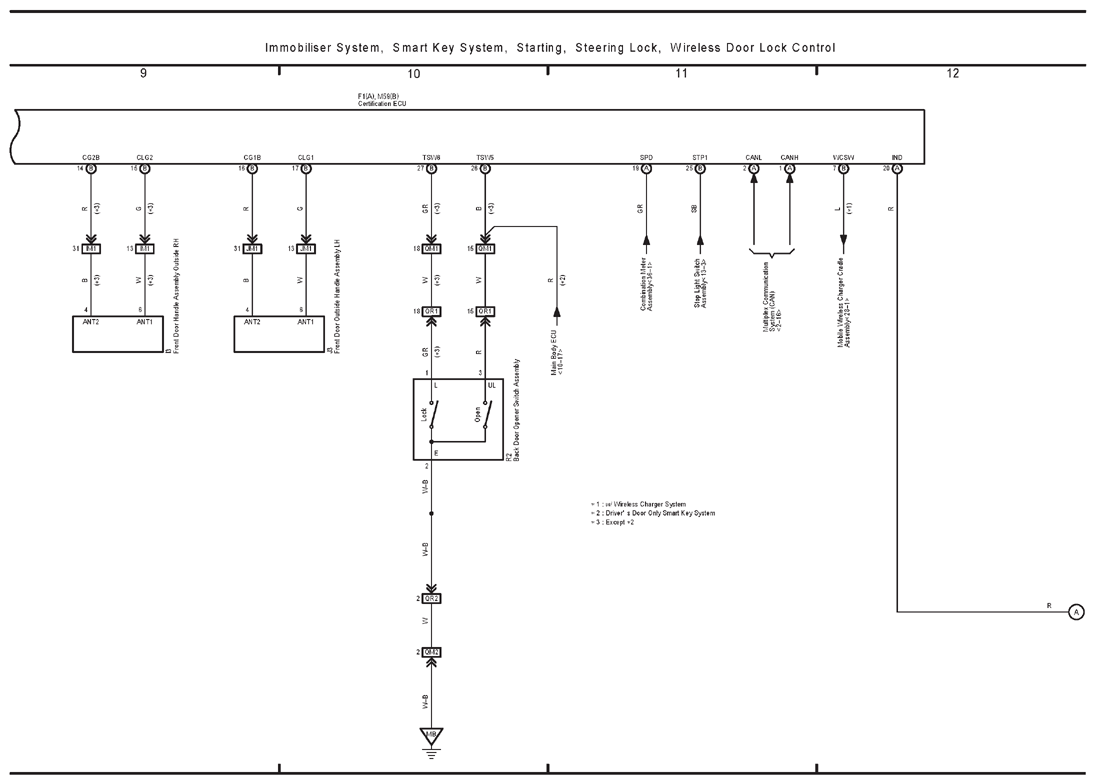

G12231240

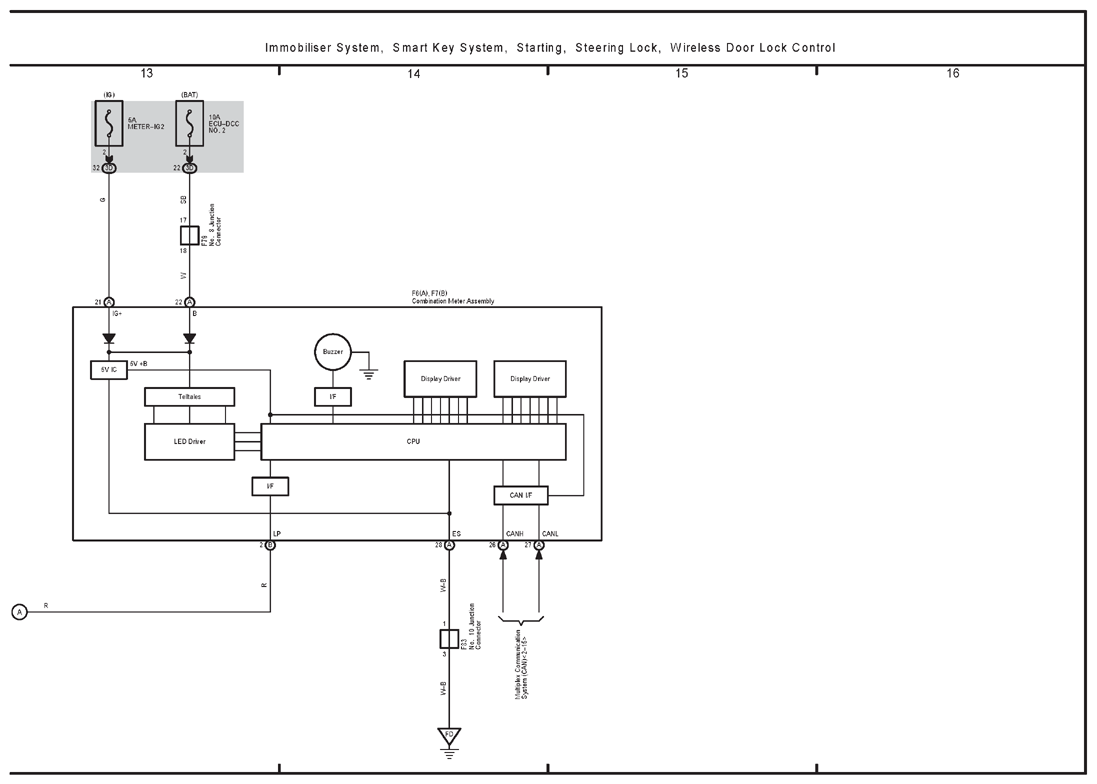

G12231241
