Hybrid System (Lithium-Ion Battery), Shift Control System (Lithium-Ion Battery), Vehicle Proximity Notification System (Lithium-Ion Battery), Cruise Control (Lithium-Ion Battery)

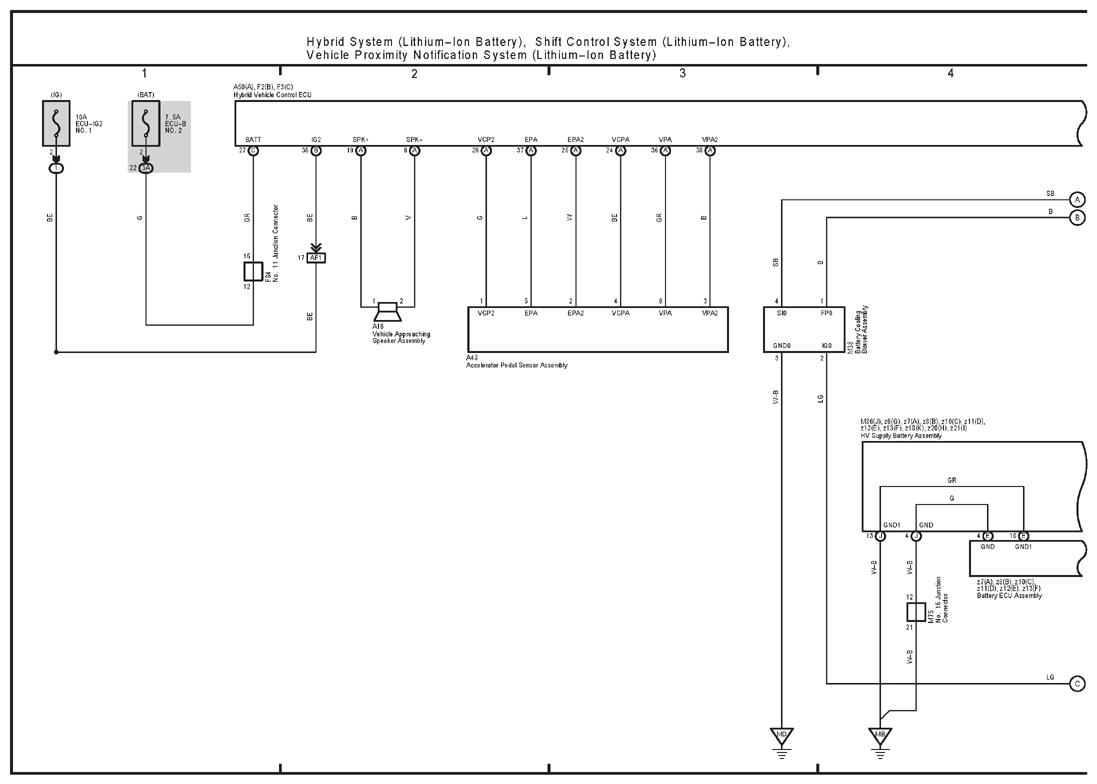

G12231270

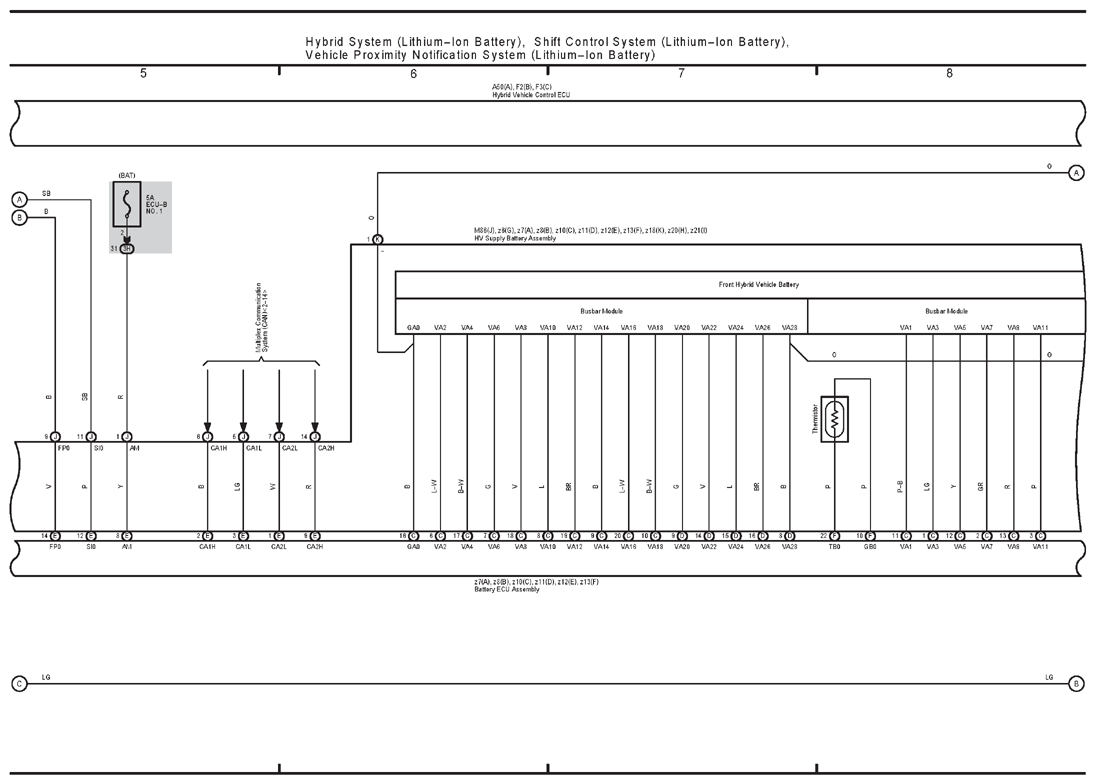

G12231271

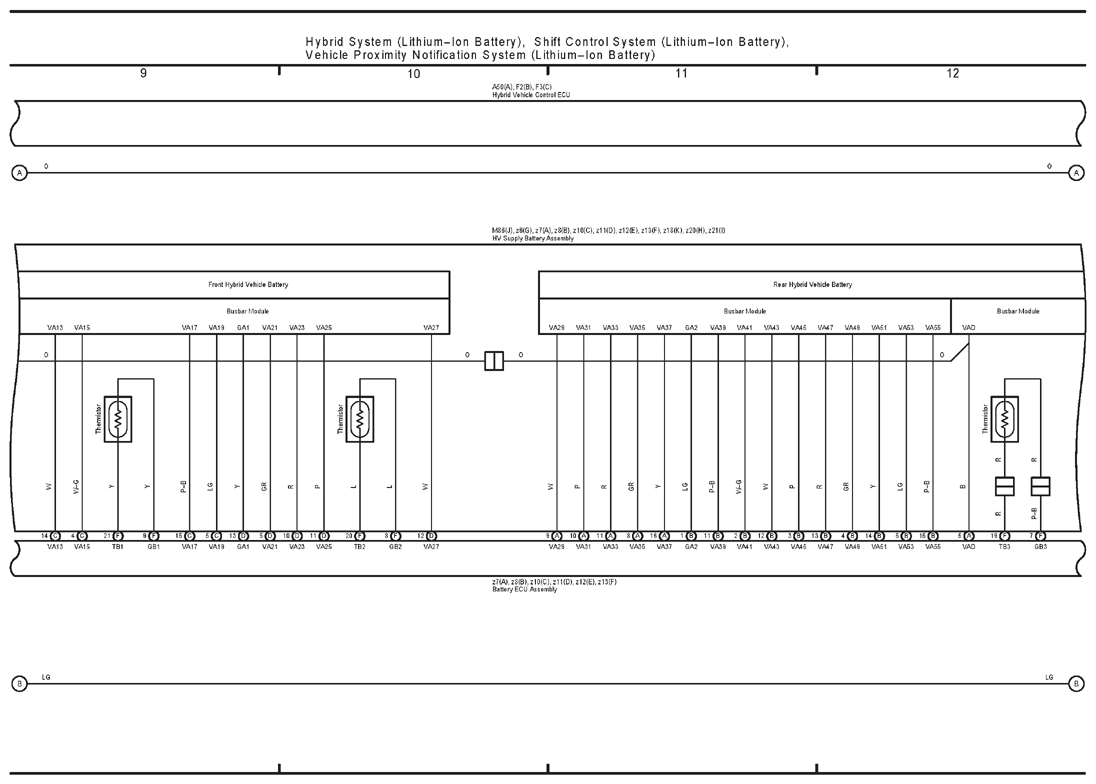

G12231272

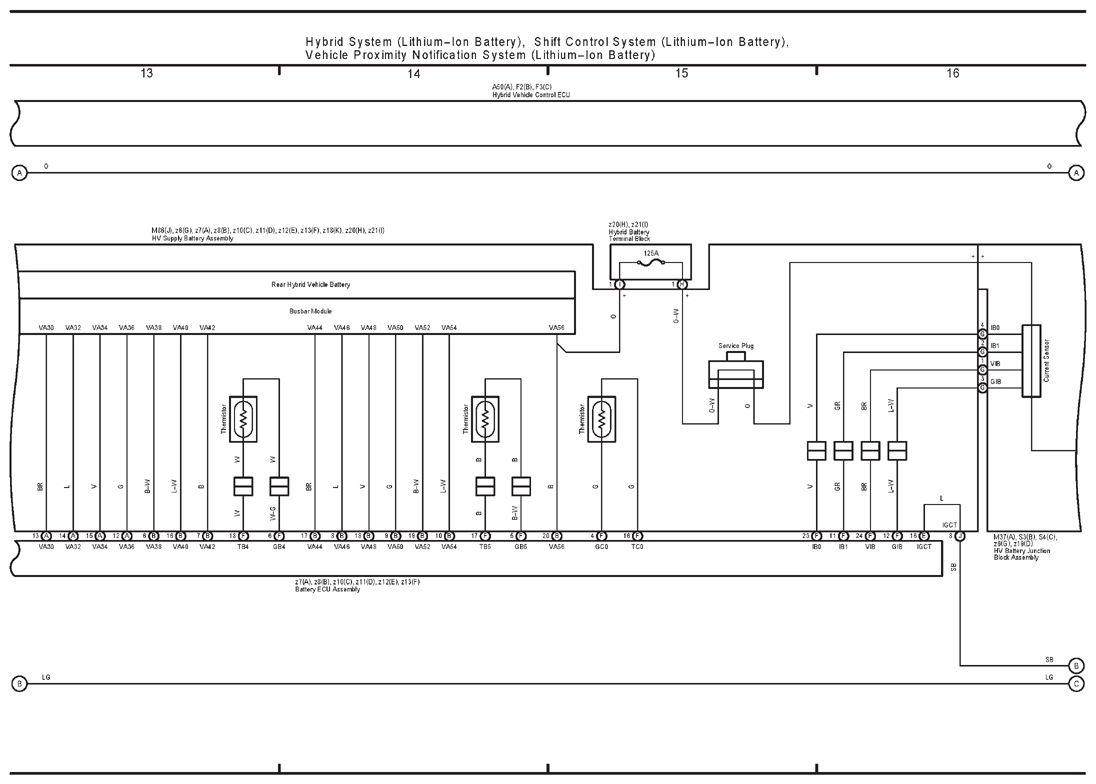

G12231273

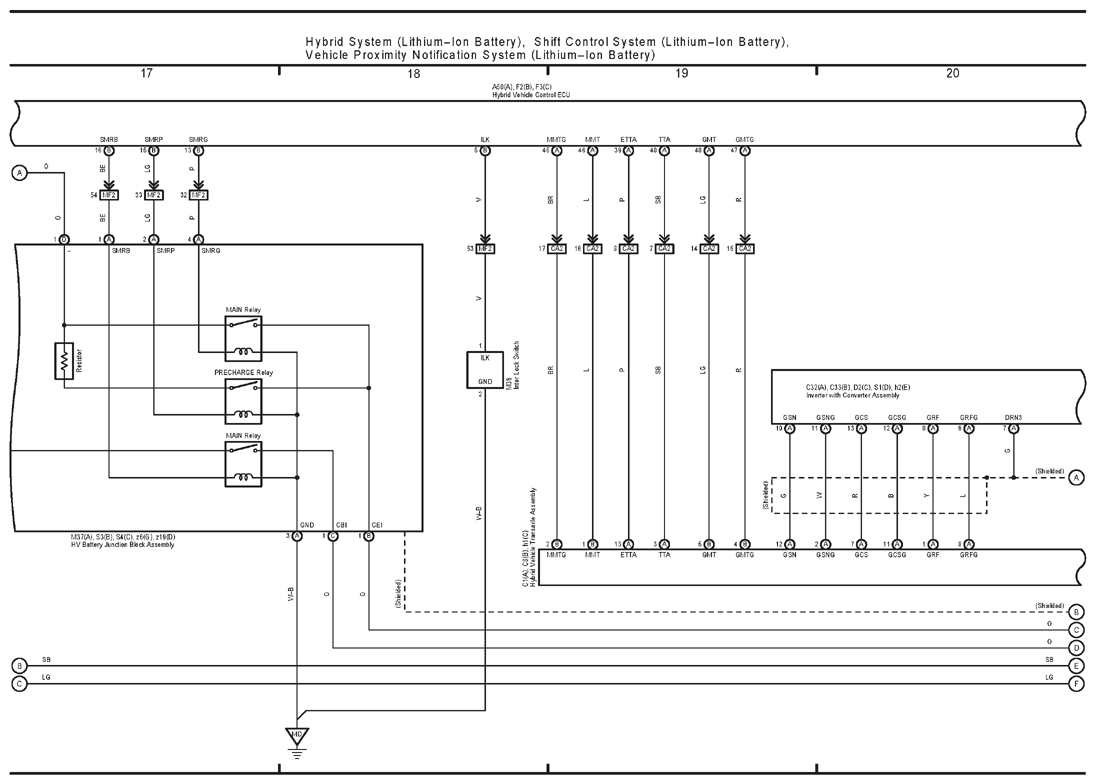

G12231274

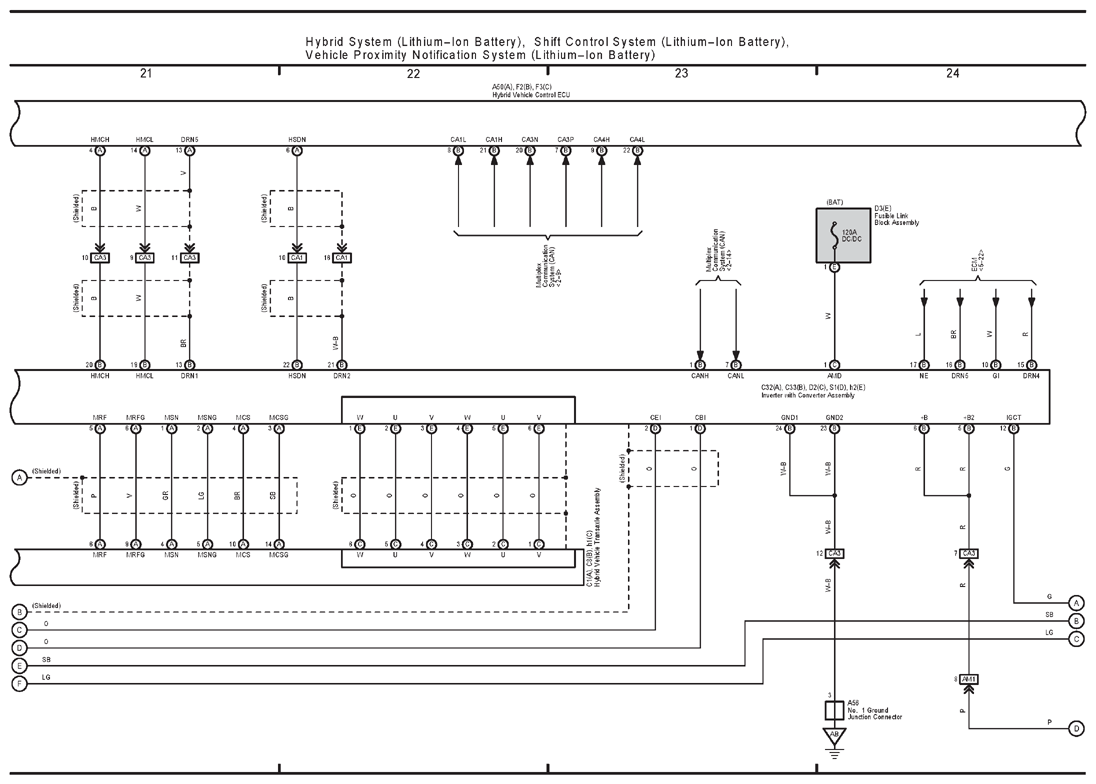

G12231275

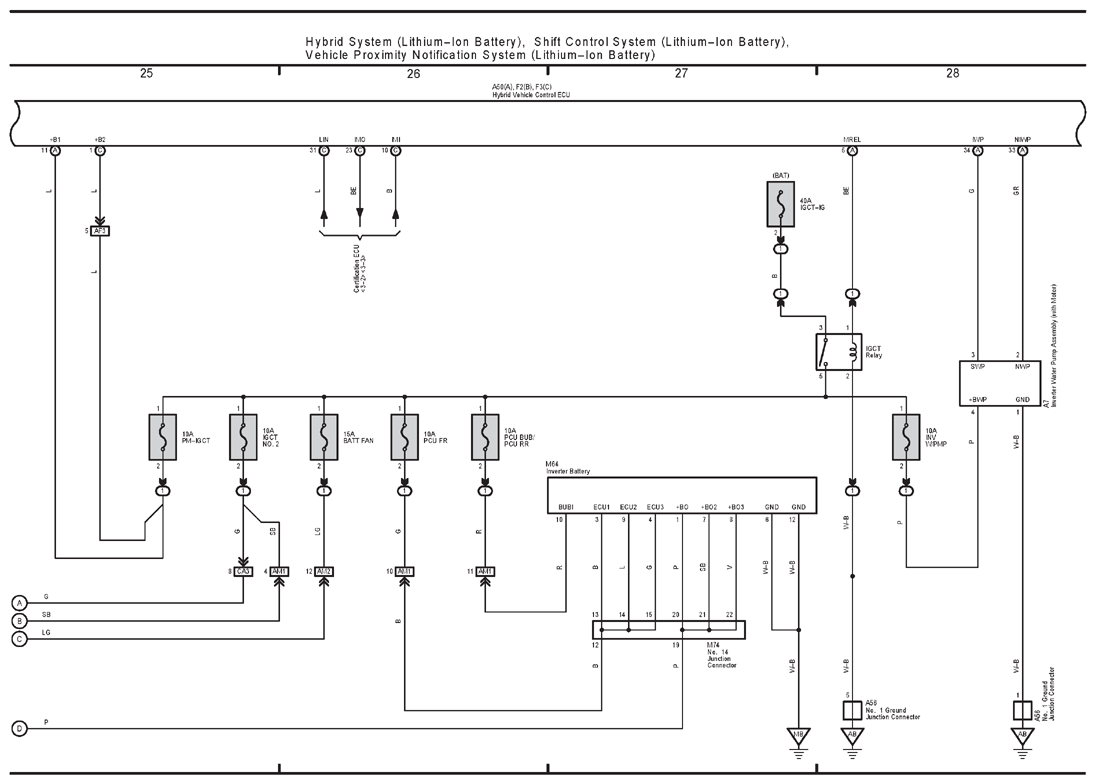

G12231276

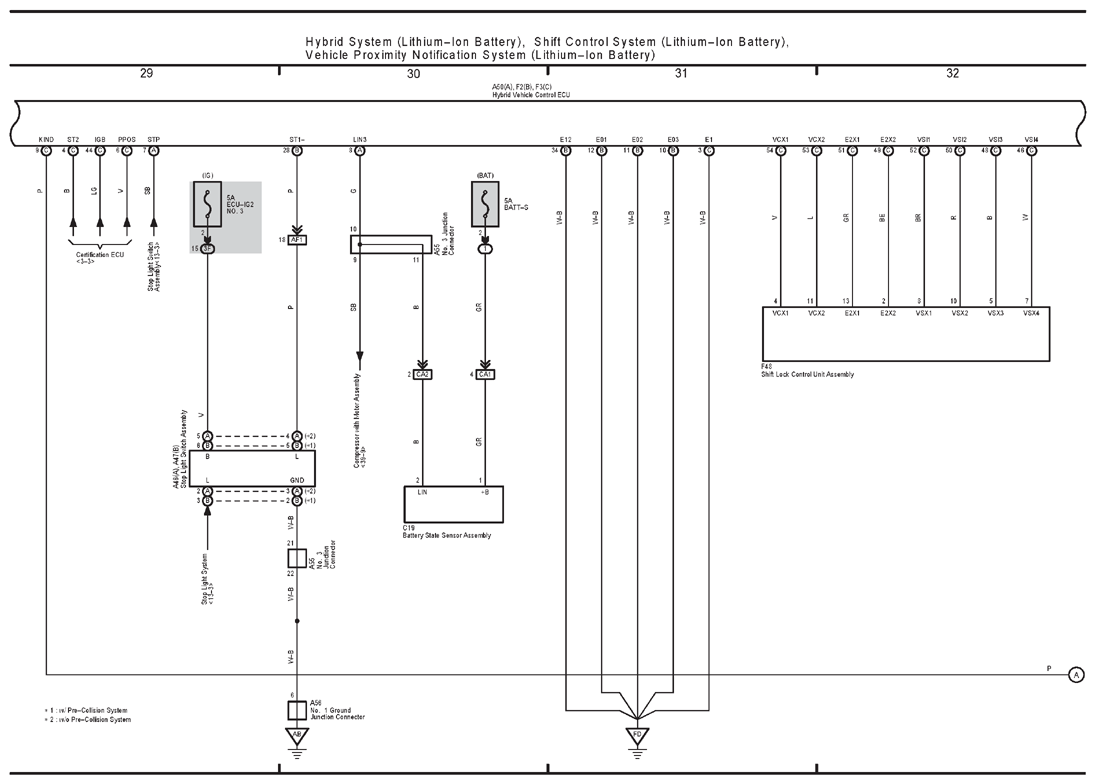

G12231277

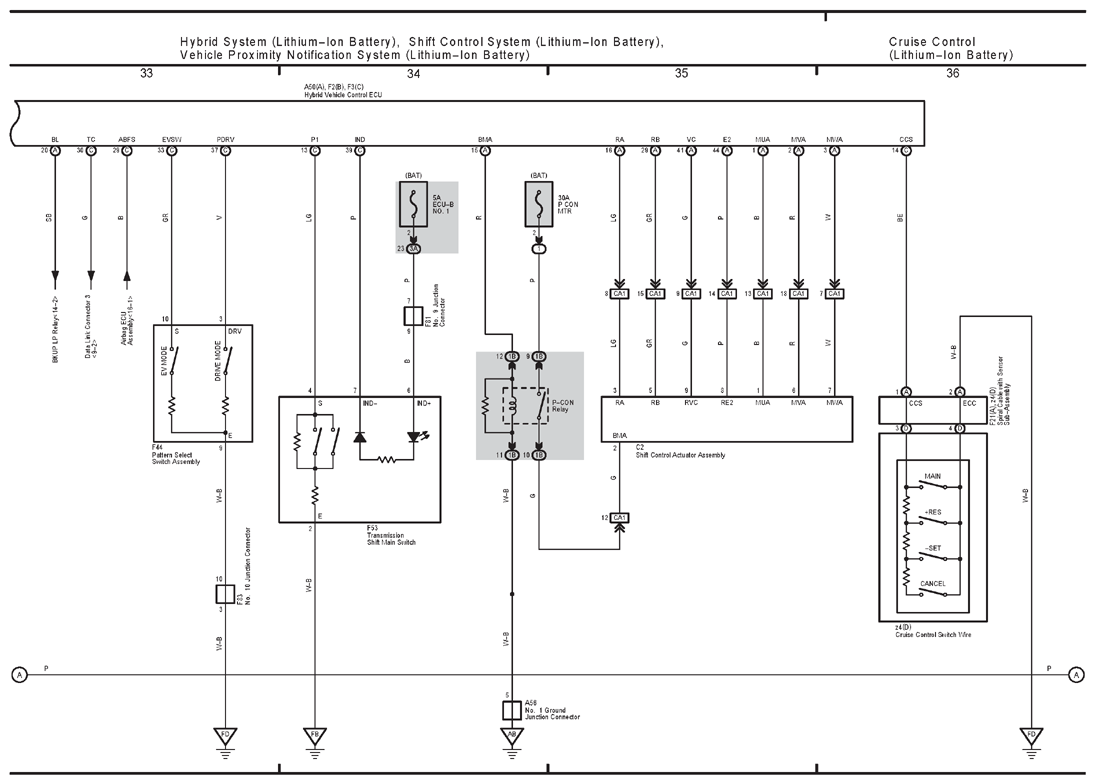

G12231278

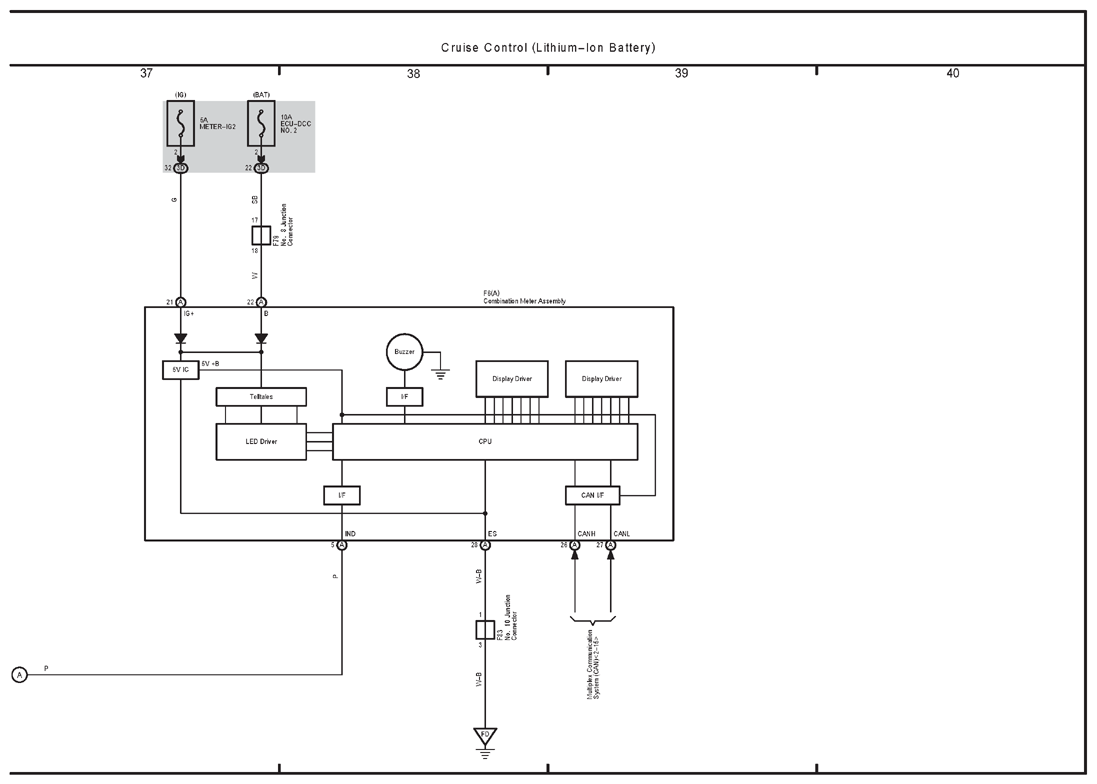

G12231279
