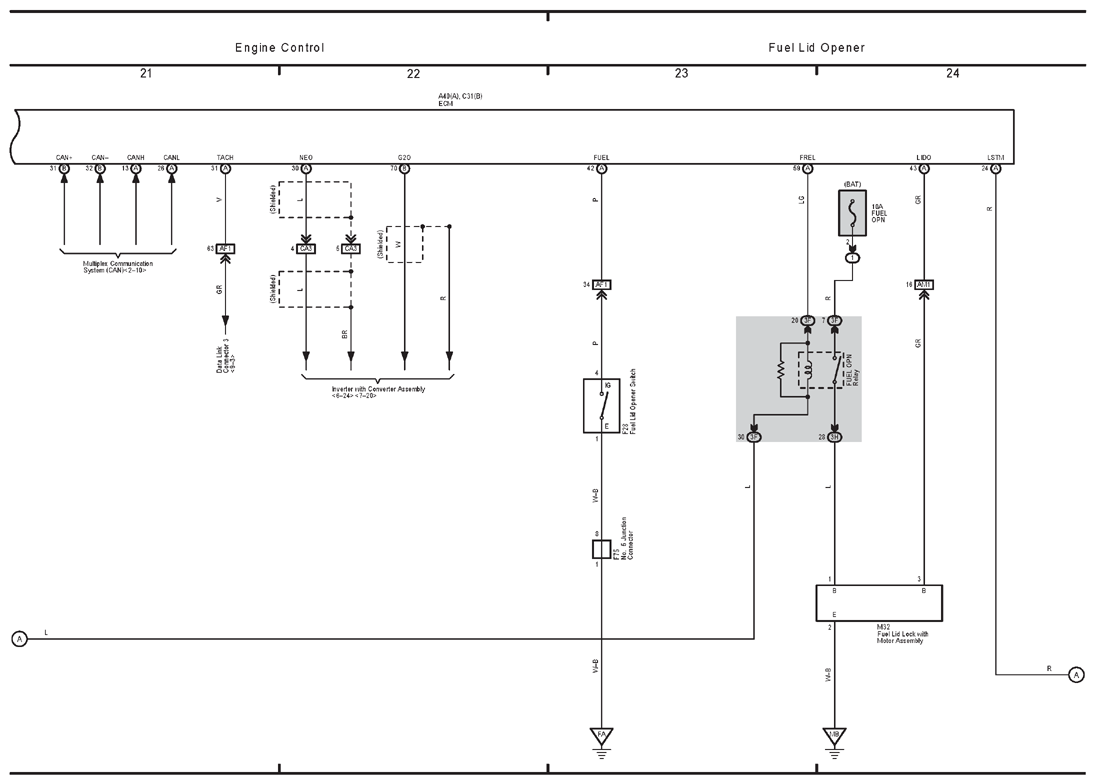

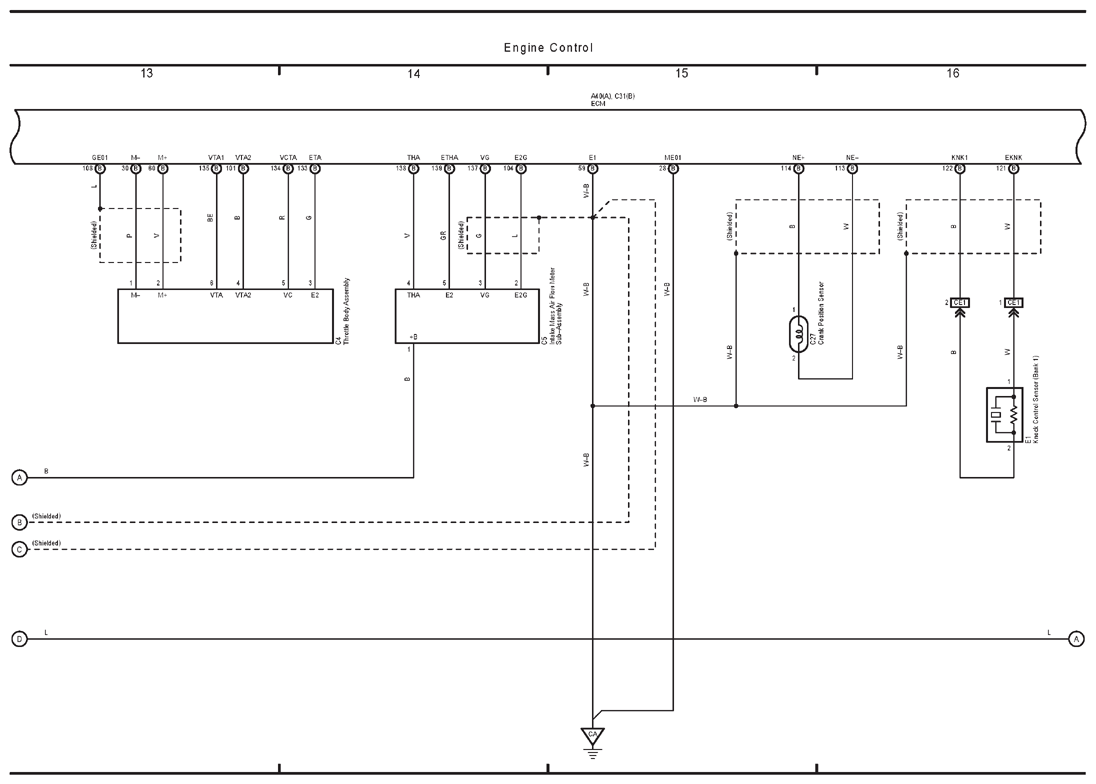

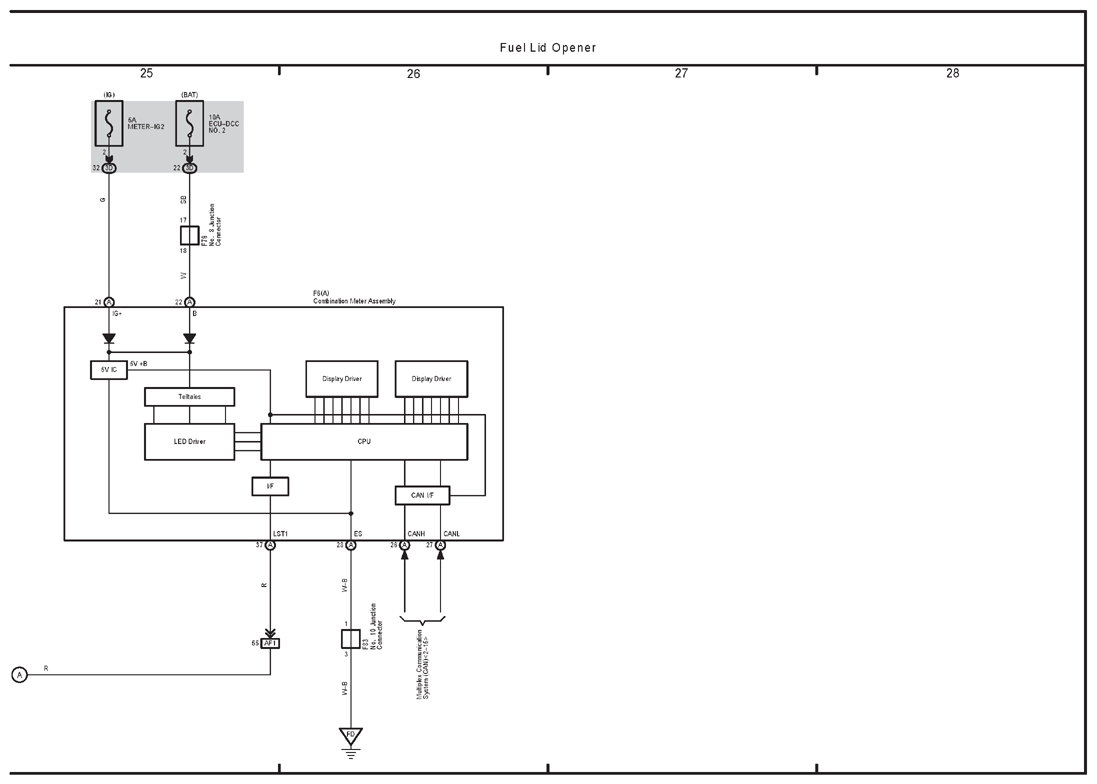

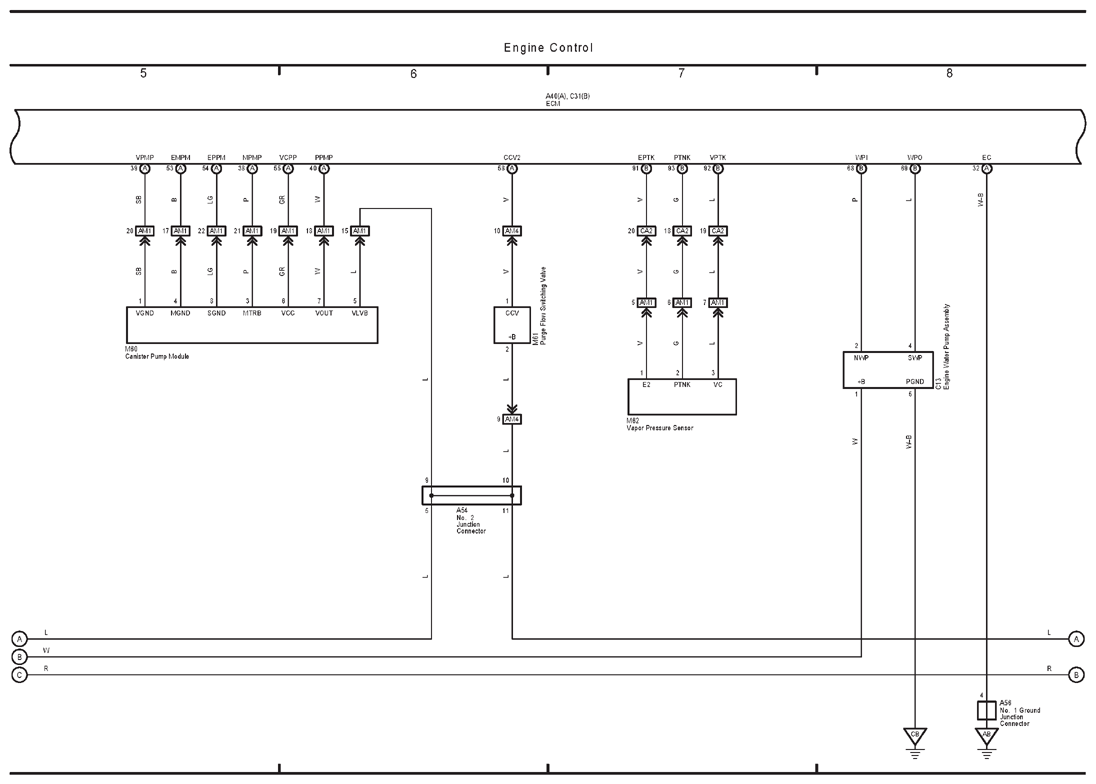

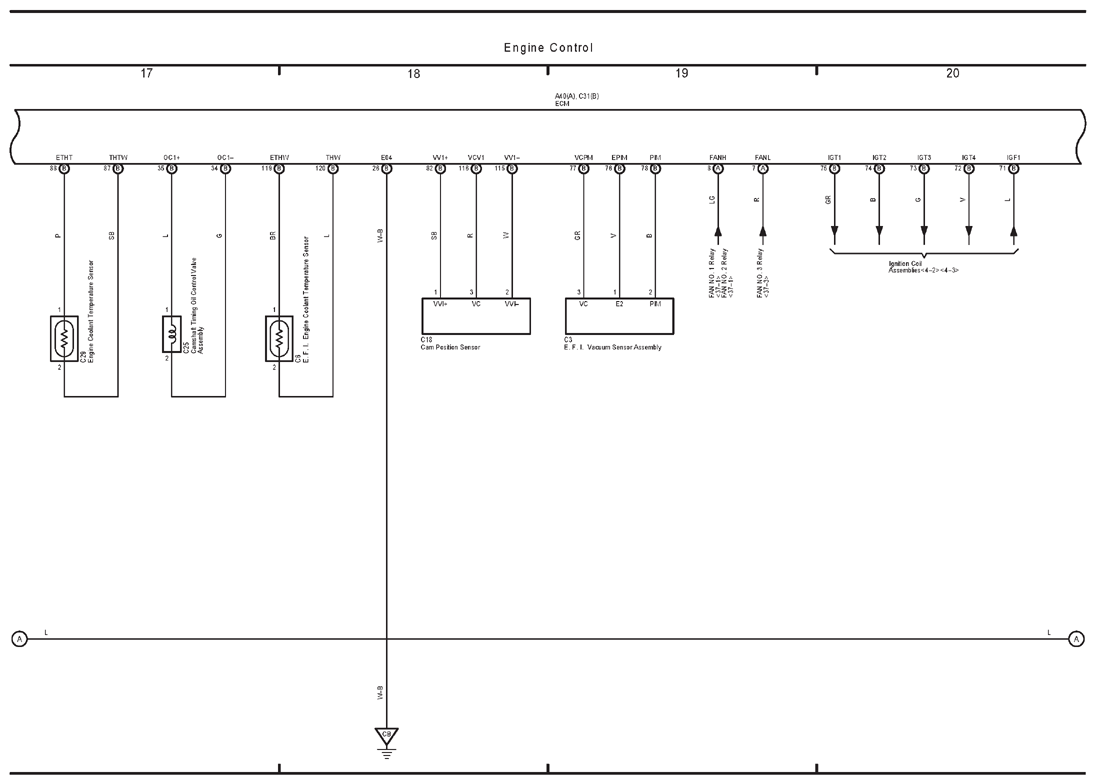

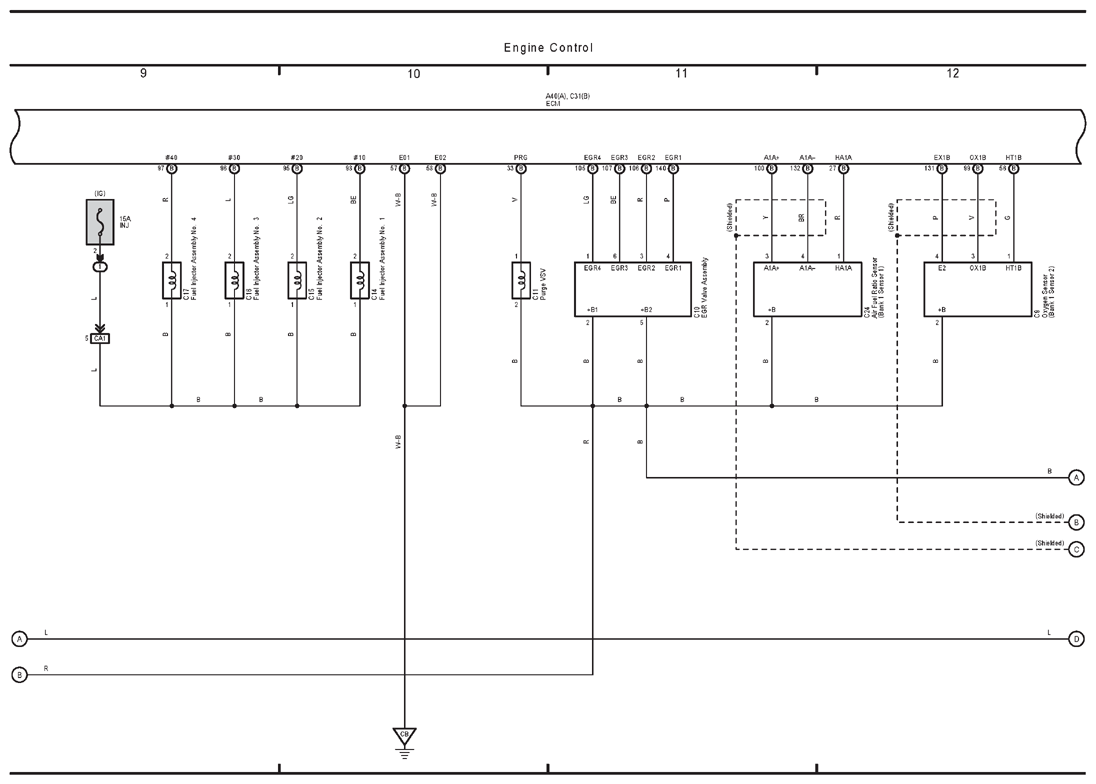

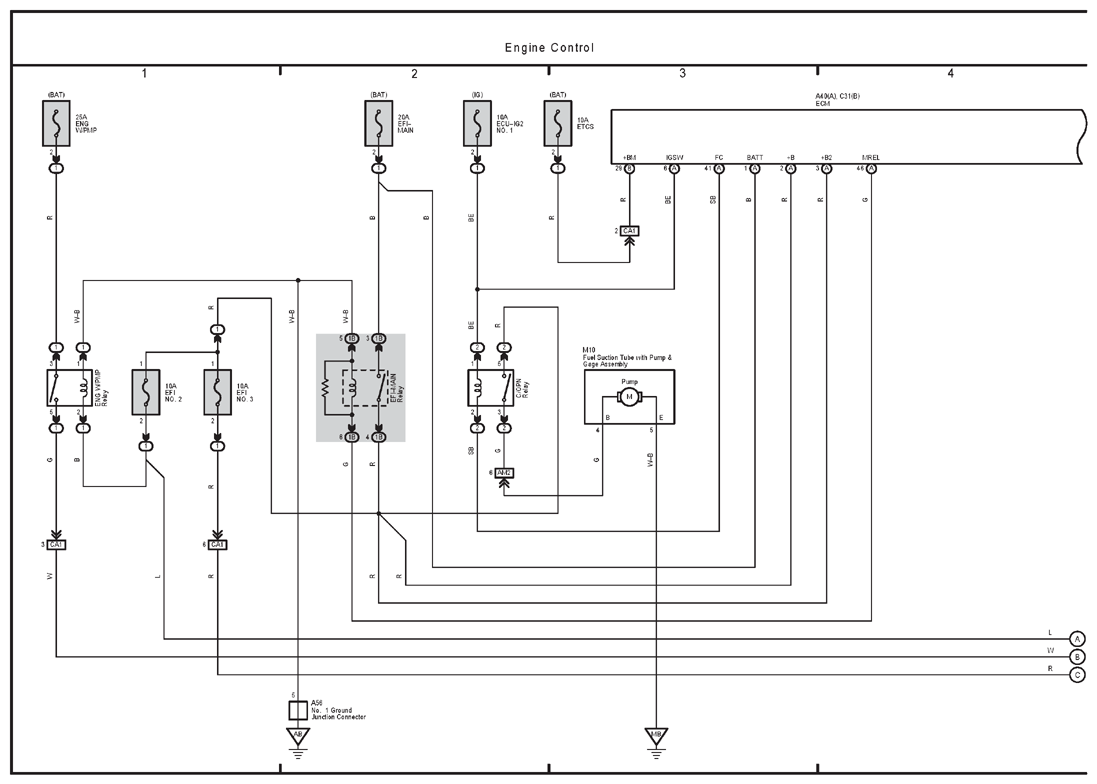

Home >> Toyota >> 2016 >> Prius Four >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Engine Control, Fuel Lid Opener
