Installation [11/2015 - ]: Procedure
- INSTALL FRONT LOWER COIL SPRING INSULATOR
- INSTALL FRONT COIL SPRING

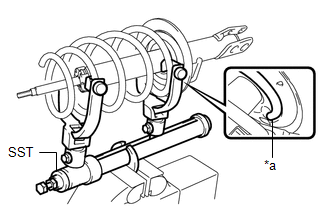

- Using SST, compress the front coil spring.
- SST: 09727-30021
- 09727-00010
- 09727-00021
- 09727-00031
TEXT IN ILLUSTRATION*a Lower End NOTE:- When replacing the front coil spring with a new one, make sure to check the part number and install it to the correct position.
- Do not use an impact wrench. It will damage SST.
- SST: 09727-30021
- Install the front coil spring onto the front shock absorber assembly.NOTE:
Make sure to fit the end of the spring that has the larger diameter into the front shock absorber lower seat.
HINT:
Fit the lower end of the front coil spring into the gap of the front shock absorber lower seat.
- Using SST, compress the front coil spring.
- INSTALL FRONT UPPER COIL SPRING INSULATOR
- Shock Absorber Type A:
- Install the front upper coil spring insulator to the front shock absorber assembly.
- Shock Absorber Type B:
- Install the front upper coil spring insulator to the front shock absorber assembly.NOTE:
Make sure that the top end of the insulator (shock absorber dust cover) and the front upper coil spring insulator are securely attached.
*1 Front Upper Coil Spring Insulator *a Top End of the Insulator (Shock Absorber Dust Cover)
- Install the front upper coil spring insulator to the front shock absorber assembly.
- Shock Absorber Type A:
- INSTALL FRONT NO. 1 SPRING BUMPER SUB-ASSEMBLY
- Install the front No. 1 spring bumper sub-assembly to the front shock absorber assembly.

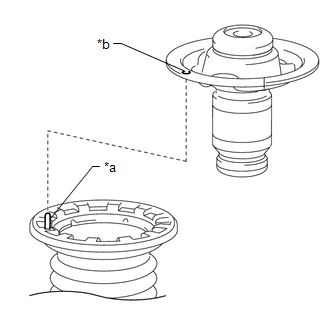

*a Protrusion *b Hole NOTE:When installing the front No. 1 spring bumper sub-assembly, first align the hole in the front No. 1 spring bumper sub-assembly with the protrusion of the front upper coil spring insulator.
HINT:

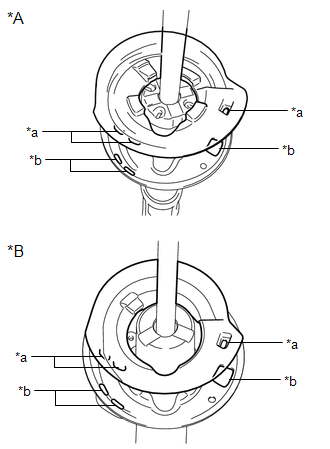

Visually check that the air discharge grooves of the front No. 1 spring bumper sub-assembly are aligned with the rib portions of the front spring seat.
*a Rib Portion *b Air Discharge Groove
- Install the front No. 1 spring bumper sub-assembly to the front shock absorber assembly.
- INSTALL FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
- Temporarily tighten a new front support to front shock absorber nut.
- Remove SST from the front coil spring.NOTE:
Do not use an impact wrench. It will damage SST.
- Using SST and long hexagon socket wrench, hold the shock absorber rod and tighten the front support to front shock absorber nut.
- SST: 09729-97202
TEXT IN ILLUSTRATION*1 Long Hexagon Socket Wrench *a Hold *b Turn *c Torque Wrench Fulcrum Length Specified tightening torque
Torque: 33 N*m (340 kgf*cm, 25 ft.*lbf)
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ]
- When using SST (fulcrum length of 40 mm (1.57 in.)) + torque wrench (fulcrum length of 300 mm (11.8 in.)):
Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)
- INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY
- CONNECT FRONT UPPER COIL SPRING INSULATOR (Shock Absorber Type B)
- Connect the end of the insulator of the front upper coil spring insulator with the claws of the front shock absorber assembly.
*1 Front Upper Coil Spring Insulator *a Claw NOTE:- Make sure that the end of the front No. 1 shock absorber dust cover is securely attached to the claws of the front shock absorber assembly.
- Make sure there is no excessive damage to the bellows of the front No. 1 shock absorber dust cover.
- Do not allow oil, grease, etc. to contact the front No. 1 shock absorber dust cover.
- If there is oil or grease on the insulator, wipe clean with a cloth. Do not use an alcohol based cleaner.
- Connect the end of the insulator of the front upper coil spring insulator with the claws of the front shock absorber assembly.
- TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING

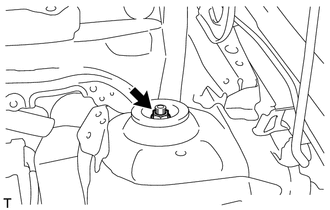

- Temporarily tighten a new nut through the front No. 2 suspension support.
- Install the front shock absorber with coil spring to the steering knuckle and insert the 2 bolts and 2 nuts.
Torque: 164 N*m (1672 kgf*cm, 121 ft.*lbf)
NOTE:When installing the nuts, keep the bolts from rotating.
HINT:
The bolt can be inserted in either direction, however, make sure that they are installed in the same direction.
- Temporarily tighten a new nut through the front No. 2 suspension support.
- INSTALL FRONT FLEXIBLE HOSE
- Install the front flexible hose and front speed sensor with the bolt.
Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)
NOTE:Do not twist the front flexible hose and front speed sensor when installing it.
- Install the front flexible hose and front speed sensor with the bolt.
- INSTALL FRONT STABILIZER LINK ASSEMBLY
- Install the front stabilizer link assembly to the front shock absorber assembly with the nut.
Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)
HINT:
Use a hexagon socket wrench to hold the stud.
- Install the front stabilizer link assembly to the front shock absorber assembly with the nut.
- INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- FULLY TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING

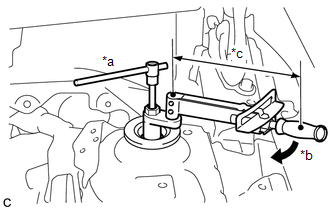

- Using SST and long hexagon socket wrench, hold the front shock absorber rod and tighten the nut.
- SST: 09729-97202
TEXT IN ILLUSTRATION*a Hold *b Turn *c Torque Wrench Fulcrum Length Specified tightening torque
Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ]
- When using SST (fulcrum length of 40 mm (1.57 in.)) + torque wrench (fulcrum length of 345 mm (1.13 ft.)):
Torque: 49 N*m (503 kgf*cm, 36 ft.*lbf)
- Using SST and long hexagon socket wrench, hold the front shock absorber rod and tighten the nut.
- INSTALL FRONT SUSPENSION SUPPORT DUST COVER
- INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
- INSTALL FRONT NO. 1 VENTILATOR SEAL
Refer to PROCEDURE - Step 17
- INSTALL FRONT AIR SHUTTER SEAL
Refer to PROCEDURE - Step 18
- INSTALL INNER COWL TOP TO COWL BRACE
Refer to PROCEDURE - Step 19
- INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to PROCEDURE - Step 2
- STABILIZE SUSPENSION
See step 20
- INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Refer to ADJUSTMENT [11/2015 - 06/2017] , or refer to ADJUSTMENT [06/2017 - ]
