Installation [11/2015 - ]: Procedure

(See step  4)

1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts.

1. Install the front lower No. 1 suspension arm sub-assembly LH to the steering knuckle with a new nut.

   Torque: 98 N*m (999 kgf*cm, 72 ft.*lbf)

   NOTE:

   Prevent oil from adhering to the threaded and tapered parts.

2. Install a new clip.
   NOTE:

   Further tighten the nut up to 60° if the holes for the clip are not aligned.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

See step  20

1. Fully tighten the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

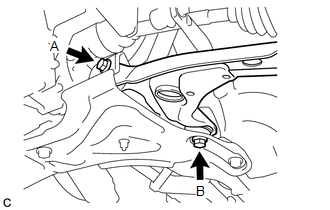

   Bolt A

   Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

   Bolt B

   Torque: 151 N*m (1540 kgf*cm, 111 ft.*lbf)

Refer to PROCEDURE - Step 59 , or refer to PROCEDURE - Step 60

(Refer to ADJUSTMENT [11/2015 - 06/2017] , or refer to ADJUSTMENT [06/2017 - ] )
