Installation [11/2015 - 06/2017]: Procedure

  1. INSTALL LOWER STEERING WHEEL BOSS COVER
    1. Engage the 2 pins and 4 claws to install the lower steering wheel boss cover to the steering wheel sub-assembly.
      GTY335499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CRUISE CONTROL SWITCH WIRE (w/ Cruise Control System)
  3. INSTALL CRUISE CONTROL SWITCH (w/ Cruise Control System)

    Refer to PROCEDURE - Step 1

  4. INSTALL STEERING PAD SWITCH ASSEMBLY

    See step  2

  5. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  6. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. INSTALL STEERING WHEEL ASSEMBLY

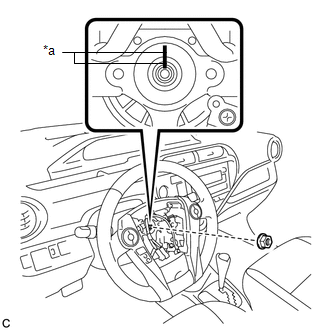

    1. Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.
      GTY701128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the steering wheel assembly set nut.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Connect the connectors to the spiral cable sub-assembly.
  8. CHECK STEERING WHEEL CENTER POINT
  9. INSTALL HORN BUTTON ASSEMBLY

    (Refer to INSTALLATION [11/2015 - ] )
