Removal [11/2015 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [11/2015 - ] ).

  2. REMOVE INNER COWL TOP TO COWL BRACE

    Refer to PROCEDURE - Step 4

  3. REMOVE FRONT AIR SHUTTER SEAL

    Refer to PROCEDURE - Step 5

  4. REMOVE FRONT NO. 1 VENTILATOR SEAL

    Refer to PROCEDURE - Step 6

  5. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE AIR FUEL RATIO SENSOR

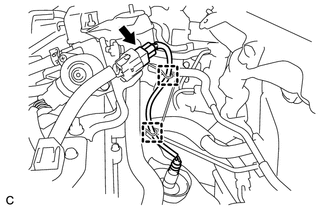

    1. Disconnect the air fuel ratio sensor connector and 2 clamps.
      GTY325063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

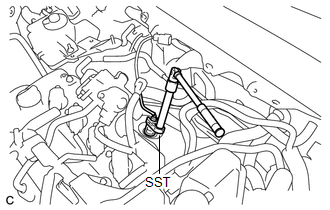

    2. Using SST, remove the air fuel ratio sensor.
      GTY736907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      • SST: 09224-00011
