Removal [11/2015 - 06/2017]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and 2 compression springs.

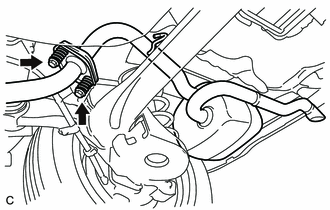

      GTY329789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly.
  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:

    Perform this procedure when the coolant is not hot.

    1. Disconnect the 2 heater water hoses.
      GTY719762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the 2 bolts and 2 compression springs.

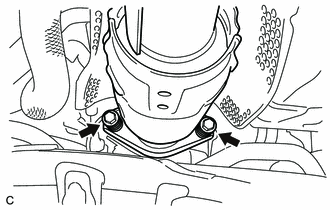

      GTY339692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    3. Remove the front exhaust pipe assembly from the 3 exhaust pipe supports.
    4. Remove the gasket from the exhaust manifold.
