Components [11/2015 - ]: Illustration

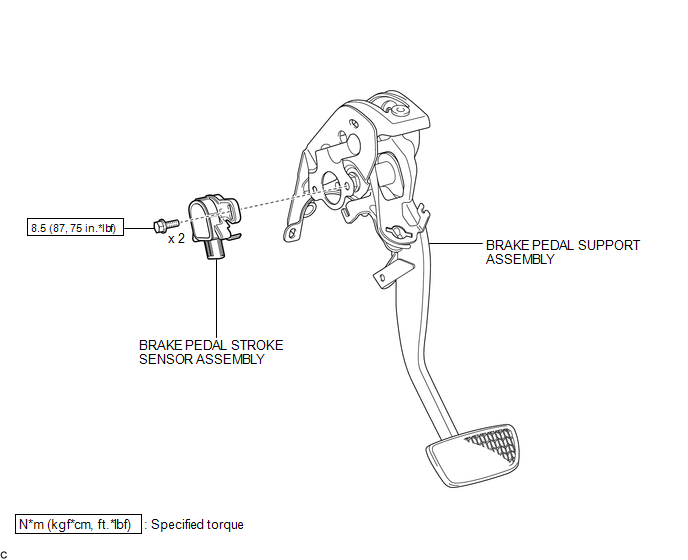

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
GTY697851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

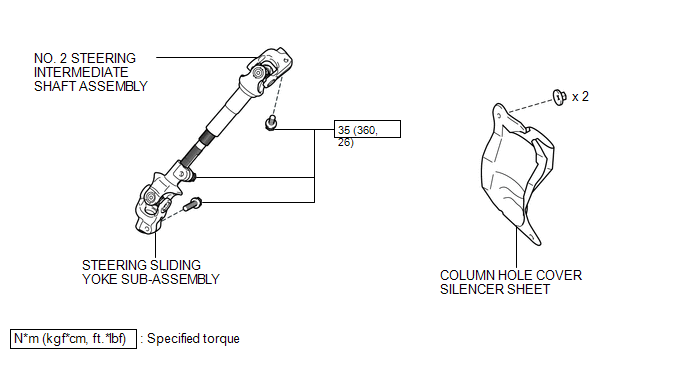

Fig 1: Brake Pedal Replacement Components With Torque Specifications (2 Of 4)
GTY712611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


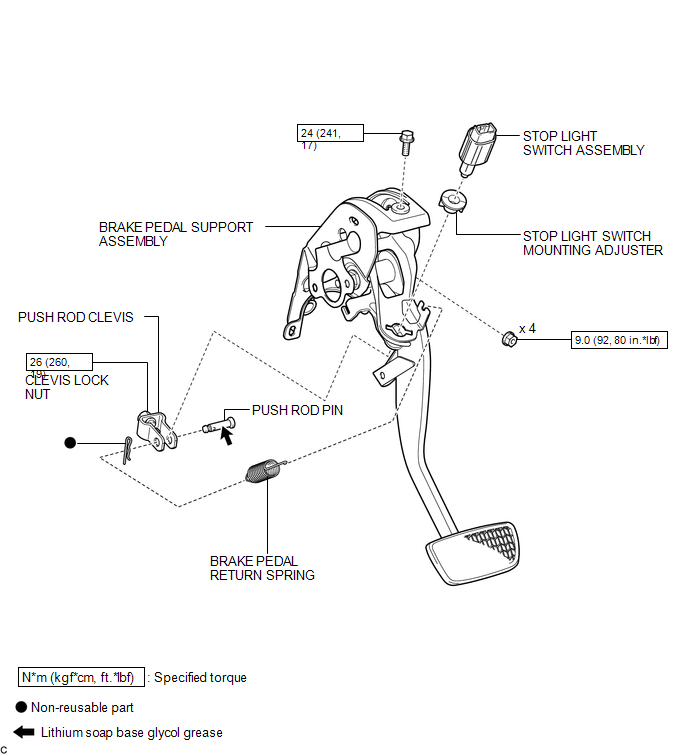

Fig 1: Brake Pedal Replacement Components With Torque Specifications (3 Of 4)
GTY696269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

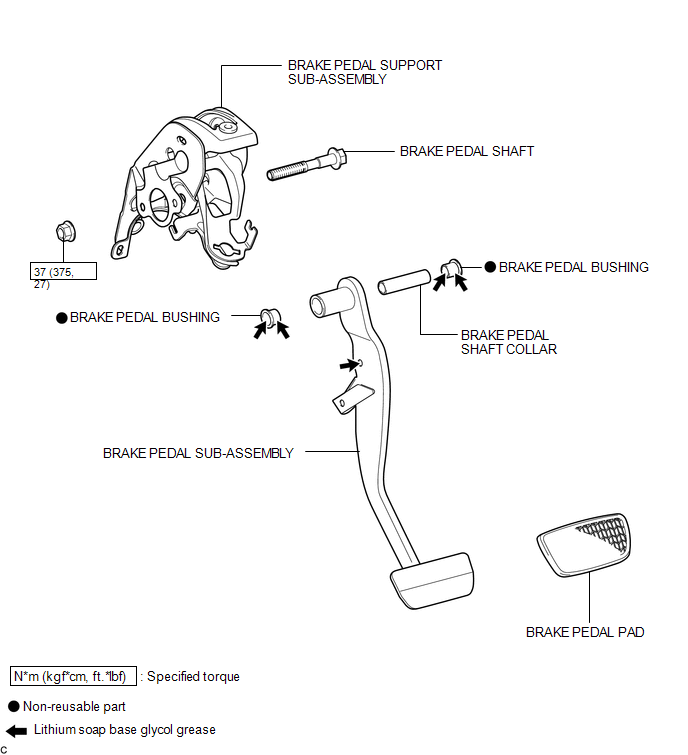

Fig 1: Brake Pedal Replacement Components With Torque Specifications (4 Of 4)
GTY699218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
