On-Vehicle Inspection [11/2015 - ]: Procedure

  1. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (for Using the Techstream)
    1. Connect the Techstream to the DLC3 with the ignition switch off.
    2. Check that the shift lever is in P and the parking brake is applied, and turn the ignition switch to ON (IG).
    3. Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake system) Utility / Zero Down.
    4. Select "Next" and wait for 10 seconds.
    5. After the booster pump has stopped, inspect that the fluid level is between the MAX and MIN lines. If necessary, refill the brake fluid to the MAX line.

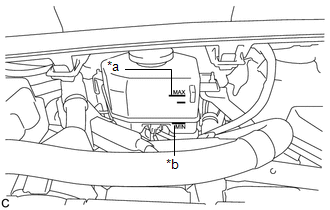

      GTY709848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a MAX Line
      *b MIN Line

      Brake fluid

      SAE J1703 or FMVSS No. 116 DOT3

  2. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (for not Using the Techstream)
    1. Inspect that the fluid level is above the MIN line with the ignition switch ON (IG). If necessary, refill the brake fluid to the fluid level support line with the ignition switch ON (IG).

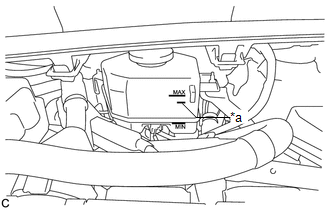

      GTY736031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Fluid Level Support Line

      Brake fluid

      SAE J1703 or FMVSS No. 116 DOT3
