Components [11/2015 - ]: Illustration

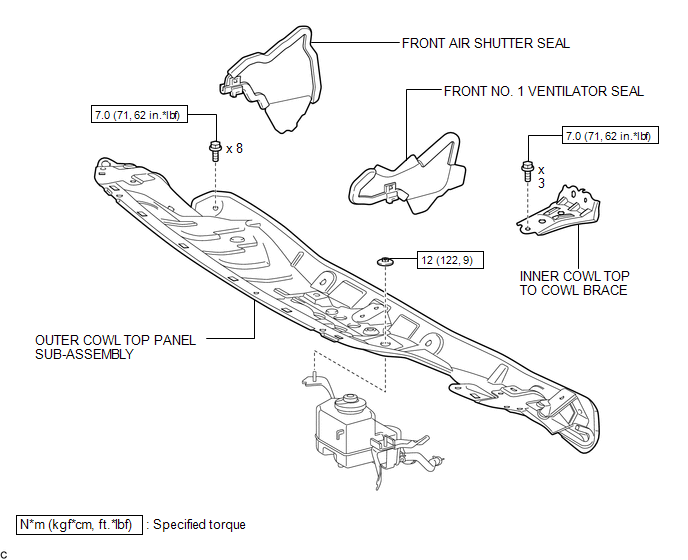

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 3)
GTY732382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

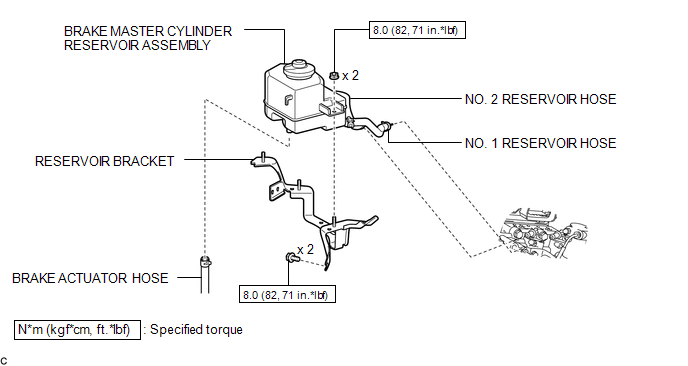

Fig 1: Brake Booster Replacement Components With Torque Specifications (2 Of 3)
GTY686128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

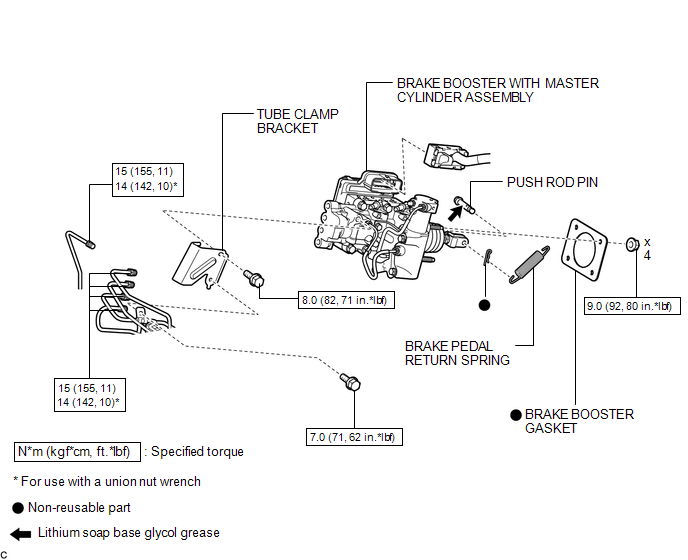

Fig 1: Brake Booster Replacement Components With Torque Specifications (3 Of 3)
GTY704267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
