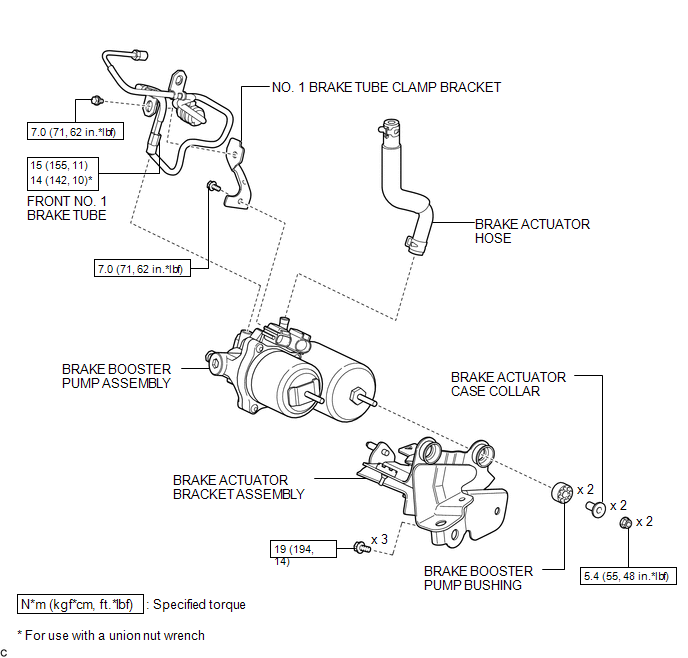

Home >> Toyota >> 2016 >> Prius C One >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System (Hydraulic) (Service Information) >> Brake Booster Pump >> Components [11/2015 - ] >> Illustration
