On-Vehicle Inspection [11/2015 - 06/2017]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

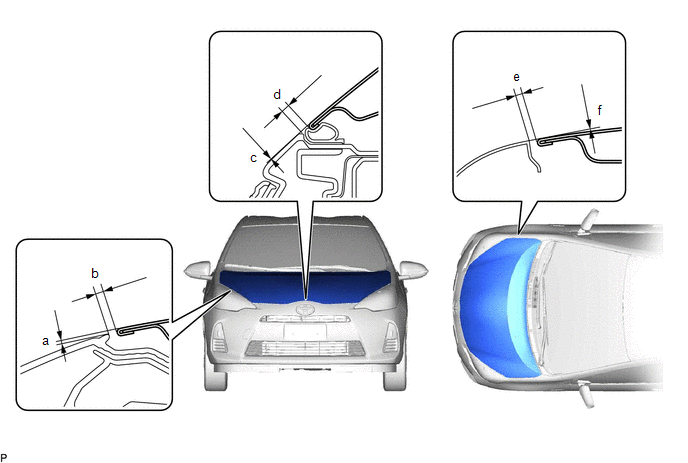

- Check that the clearance measurements of areas "a" through "f" are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a -0.85 to 3.15 mm (-0.0335 to 0.124 in.) b 1.65 to 5.65 mm (0.0650 to 0.222 in.) c -1.85 to 2.15 mm (-0.0728 to 0.0847 in.) d 2.35 to 6.35 mm (0.0925 to 0.250 in.) e 2.0 to 5.0 mm (0.0787 to 0.197 in.) f -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
- Check that the clearance measurements of areas "a" through "f" are within each standard range.
