On-Vehicle Inspection [06/2017 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

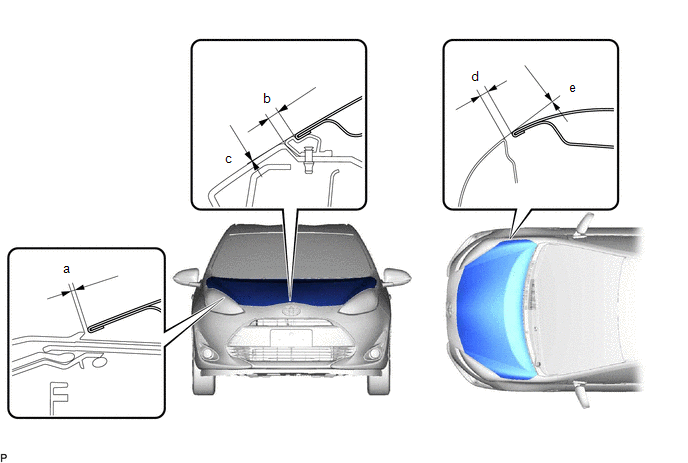

- Check that the clearance measurements of areas "a" through "e" are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 2.15 to 6.15 mm (0.0846 to 0.242 in.) b 2.35 to 6.35 mm (0.0925 to 0.250 in.) c -2.15 to 1.85 mm (-0.0846 to 0.0728 in.) d 2.0 to 5.0 mm (0.0787 to 0.197 in.) e -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) - -
- Check that the clearance measurements of areas "a" through "e" are within each standard range.
