Adjustment [06/2017 - ]: Procedure

Refer to ON-VEHICLE INSPECTION [06/2017 - ]

1. Horizontally and vertically adjust the hood.
   1. Loosen the 4 hinge bolts of the hood.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   2. Adjust the clearance between the hood and front fender by moving the hood.
   3. Tighten the 4 hinge bolts after the adjustment.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

2. Adjust the height of the front end of the hood using the cushion rubbers.

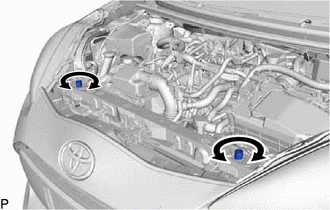

   1. Adjust the 2 cushion rubbers so that the heights of the hood and fender are aligned.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

      HINT:

      Raise or lower the front end of the hood by turning the 2 cushion rubbers.

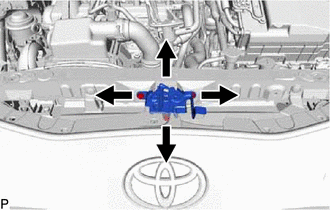

3. Adjust the hood lock.
   1. Loosen the 3 bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   2. Tighten the bolts after adjustment.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   3. Check that the striker can engage with the hood lock smoothly.
