Removal [06/2015 - 11/2018]: Procedure

Refer to REMOVAL [06/2015 - 01/2018] , or refer to REMOVAL [01/2018 - 11/2018]

Refer to REMOVAL [06/2015 - 11/2018]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

1. Turn back the floor carpet.
2. Remove the 2 clips and column hole cover silencer sheet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place matchmarks on the steering intermediate shaft and No. 2 steering intermediate shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the bolt.
3. Disconnect the No. 2 steering intermediate shaft assembly from the steering intermediate shaft.

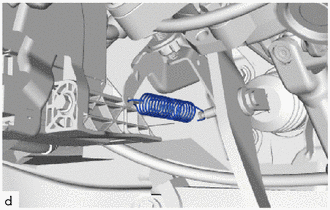

1. Remove the brake pedal return spring from the brake pedal support assembly and push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

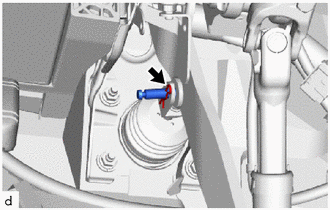

1. Remove the clip and push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

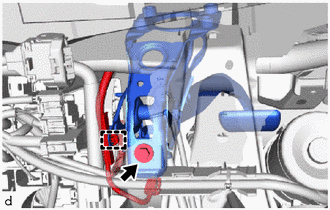

1. Disengage the clamp to separate the wire harness from the brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt to separate the brake pedal support assembly from the instrument panel reinforcement assembly.

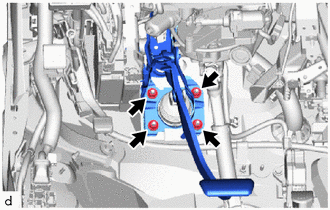

3. Remove the 4 nuts and brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the nut from the brake pedal support assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

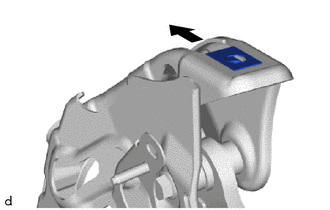

1. Remove the brake pedal pad from the brake pedal support assembly.
