Adjustment [06/2015 - ]: Procedure

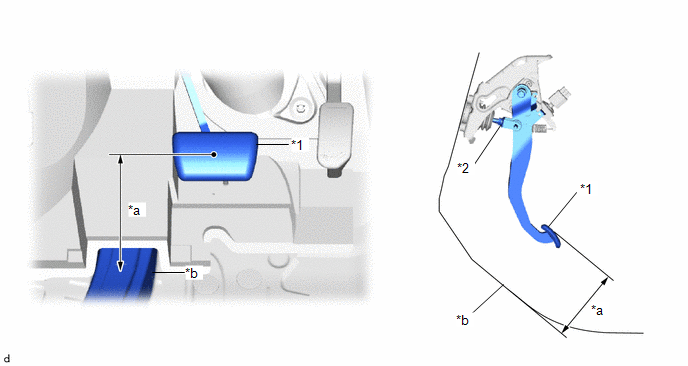

1. Check the brake pedal height.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Brake Pedal	*2	Clevis Lock Nut
   *a	Brake Pedal Height	*b	Measuring Plane of Floor Panel

   Brake pedal height from floor panel

   128.4 to 138.4 mm (5.06 to 5.45 in.)

2. Adjust the brake pedal height.
   1. Remove the stop light switch assembly.

      Refer to REMOVAL [06/2015 - ]

   2. Loosen the clevis lock nut.
   3. Adjust the brake pedal height by turning the push rod.

      Brake pedal height from floor panel

      128.4 to 138.4 mm (5.06 to 5.45 in.)

   4. Tighten the clevis lock nut.

      Torque: 25.5 N*m (260 kgf*cm, 19 ft.*lbf)

   5. Install the stop light switch assembly.

      Refer to INSTALLATION [06/2015 - ]

Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

1. Depress the brake pedal until a slight resistance is felt. Measure the brake pedal free play as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Brake Pedal Free Play

   Brake pedal free play

   1.0 to 6.0 mm (0.0394 to 0.236 in.)

   If the pedal free play is not as specified, check the stop light switch clearance.

   Refer to INSTALLATION [06/2015 - ]

   If the pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.

1. With the power switch on (READY), depress the brake pedal and measure the pedal reserve distance.

   Brake pedal reserve distance from floor panel at 196 N (20 kgf, 44 lbf)

   More than 75 mm (2.95 in.)

   NOTE:

   • Check the brake pedal reserve distance at the same location as that used when checking the brake pedal height.
   • Inspect and adjust the brake pedal height with the floor carpet folded back.

Refer to INITIALIZATION [06/2015 - ]
