On-Vehicle Inspection [06/2015 - ]: Procedure

INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Using the Techstream)

Connect the Techstream to the DLC3 with the power switch off.
Check that park (P) is selected and the parking brake is applied, and turn the power switch on (IG).

Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRC / Utility / ECB (Electronically Controlled Brake system) / Zero Down.

Chassis > ABS/VSC/TRAC > Utility

Tester Display
ECB Utility

Select "Next" and wait for 10 seconds.

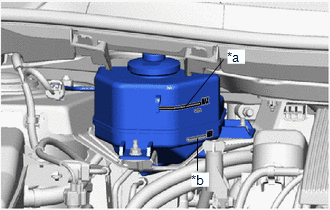

After the booster pump stops, check that the fluid level is between the MAX and MIN lines. If necessary, refill the brake fluid to the MAX line.

Brake fluid

SAE J1703 or FMVSS No. 116 DOT 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	MAX Line
*b	MIN Line

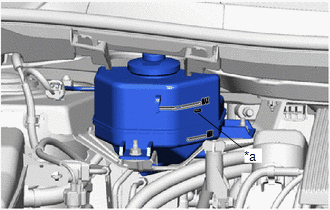

INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Not Using the Techstream)

Check that the fluid level is above the MIN line with the power switch on (IG). If necessary, refill the brake fluid to the fluid level support line with the power switch on (IG).

*a	Fluid Level Support Line
