Installation [06/2015 - ]: Procedure

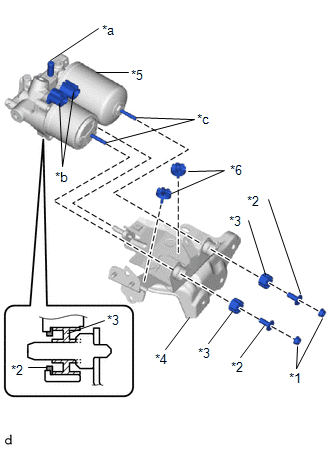

1. Install the 2 brake actuator bracket cushions to the brake actuator bracket assembly.
2. Install the brake booster pump assembly, 2 brake booster pump bushings and 2 brake actuator case collars to the brake actuator bracket assembly with the 2 nuts.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

   NOTE:

   • When handling the brake booster pump assembly, do not hold it at the parts marked *a, *b and *c in the illustration.
   • Do not drop the brake booster pump assembly when carrying it. Do not use a brake booster pump assembly that has been dropped.
   • Do not allow brake fluid to contact the inside of the connector.
   • When installing the brake booster pump assembly to the brake actuator bracket assembly, confirm that the 2 brake actuator bracket cushions are on the brake actuator bracket assembly, and brake booster pump bushing and brake booster pump collar are on the brake booster pump assembly.
   • Do not remove the hole plug before installing a new brake booster pump assembly because the brake booster pump assembly is filled with brake fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Nut
   *2	Brake Actuator Case Collar
   *3	Brake Booster Pump Bushing
   *4	Brake Actuator Bracket Assembly
   *5	Brake Booster Pump Assembly
   *6	Brake Actuator Bracket Cushion
   *a	Union
   *b	Connector
   *c	Stud

1. Install the No. 1 brake tube clamp bracket to the brake booster pump with bracket assembly with the bolt.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

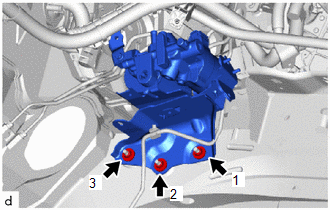

1. Install the brake booster pump with bracket assembly with the 3 nuts.
   Fig 1: Brake Booster Pump With Bracket Assembly Nuts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

   NOTE:

   Tighten the 3 nuts in the order shown in the illustration.

2. Install the wire harness clamp bracket to the brake booster pump with bracket assembly with the bolt.

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

3. Engage the clamp to install the wire harness to the brake booster pump with bracket assembly.
4. Engage the clamp to install the front No. 4 brake tube to the brake booster pump with bracket assembly.
5. Connect the 2 brake booster pump assembly connectors.
6. Engage the clamp to install the wire harness.

Refer to INSTALLATION [06/2015 - 11/2018] , or refer to INSTALLATION [11/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

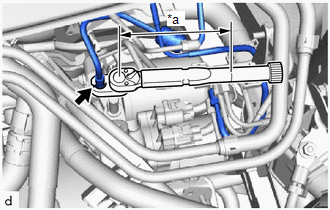

1. Using a 10 mm union nut wrench, install the front No. 1 brake tube to the brake booster pump with bracket assembly.

   Specified tightening torque

   Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [06/2015 - ]

   • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.37 in.)): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)

1. Install the No. 6 brake tube clamp with the bolt.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

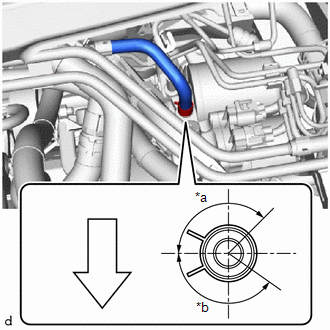

1. Connect the brake actuator hose to the brake booster pump with bracket assembly, and slide the clip to secure it
   NOTE:

   • Make sure to match the identification mark on the hose with the brake booster pump with bracket assembly rib.
   • Install the clip within the range shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	135°
   *b	145°
   	Front of the Vehicle

1. Install the wire harness clamp bracket to the brake booster pump with bracket assembly with the bolt and nut.

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

Refer to INSTALLATION [06/2015 - 11/2018] , or refer to INSTALLATION [11/2018 - ]
