Parts Location [06/2015 - ]: Illustration

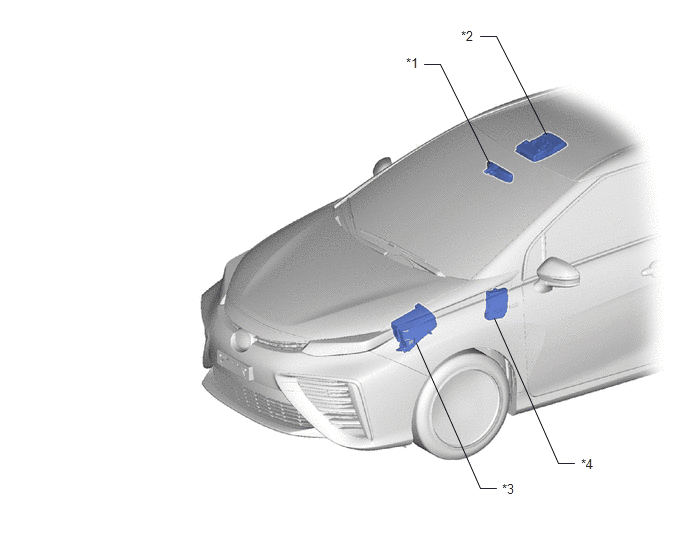

GTY551554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER REAR VIEW MIRROR ASSEMBLY
- GARAGE DOOR OPENER		 *2 MAP LIGHT ASSEMBLY
*3 MOTOR COMPARTMENT RELAY BLOCK ASSEMBLY
- ECU-B NO. 1 FUSE		 *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 1 FUSE
