Components [12/2013 - 11/2016]: Illustration

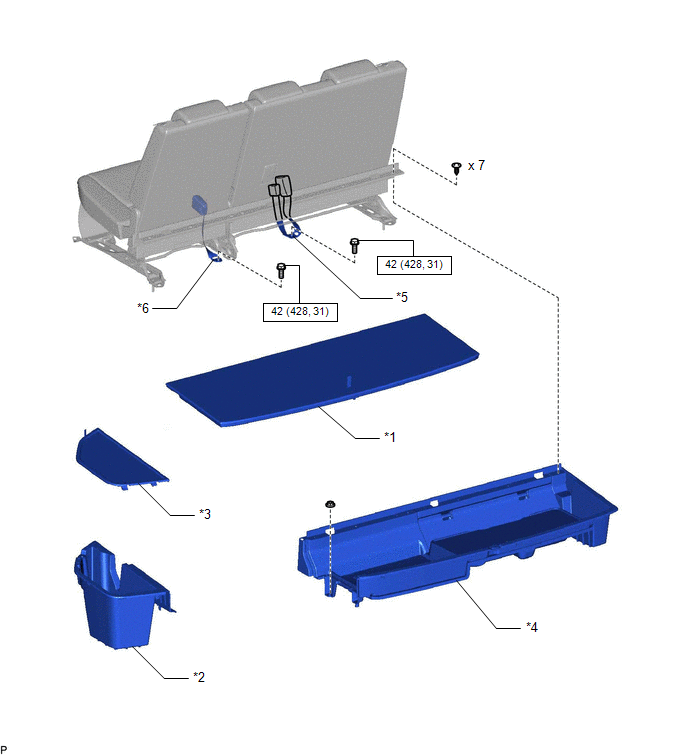

Fig 1: Rear No. 2 Seat Inner Belt Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK BOARD ASSEMBLY	*2	DECK SIDE TRIM BOX LH
*3	NO. 3 DECK BOARD SUB-ASSEMBLY	*4	REAR DECK FLOOR BOX
*5	REAR NO. 2 SEAT INNER BELT ASSEMBLY RH	*6	REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
