Components [12/2013 - 11/2016]: Illustration

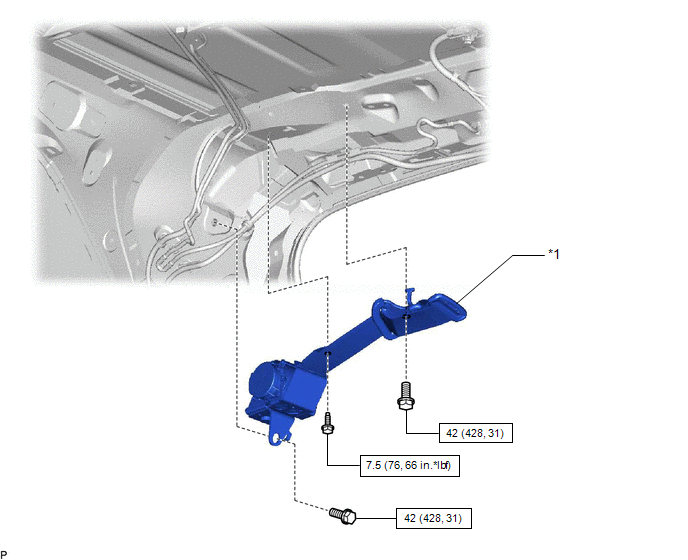

Fig 1: Rear Center Seat Outer Belt Assembly (for Rear No. 2 Seat) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR NO. 2 SEAT 3 POINT TYPE BELT ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
