System Diagram [12/2013 - 11/2016]

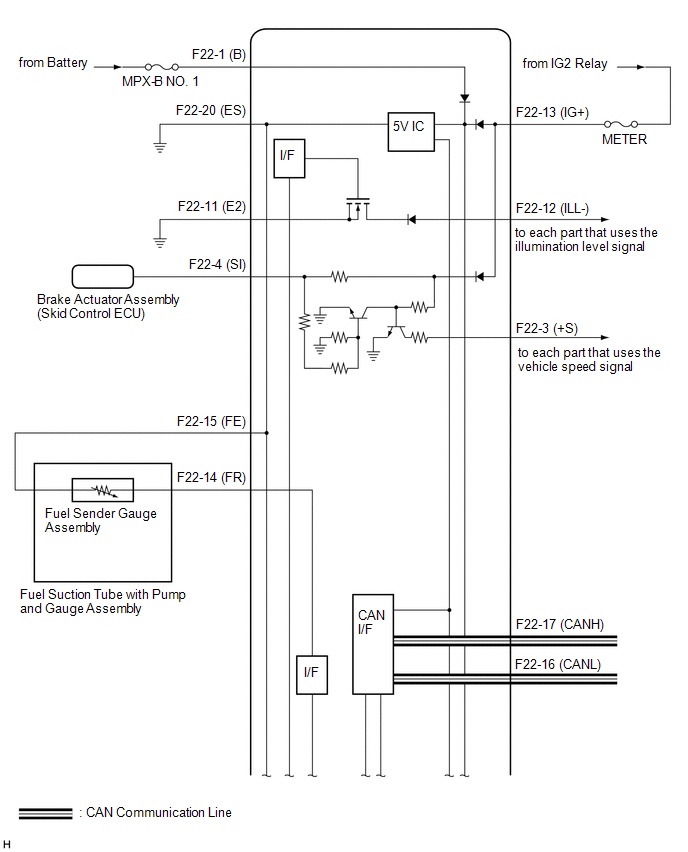

Fig 1: Meter / Gauge System Wiring Diagram (1 Of 3) (12/2013 - 11/2016)
GTY425658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

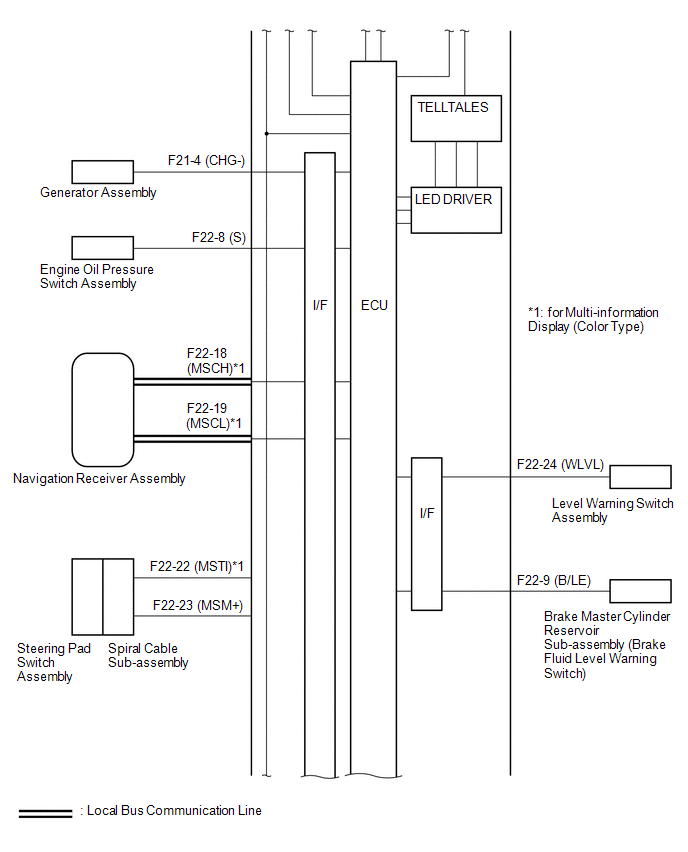

Fig 2: Meter / Gauge System Wiring Diagram (2 Of 3) (12/2013 - 11/2016)
GTY721419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

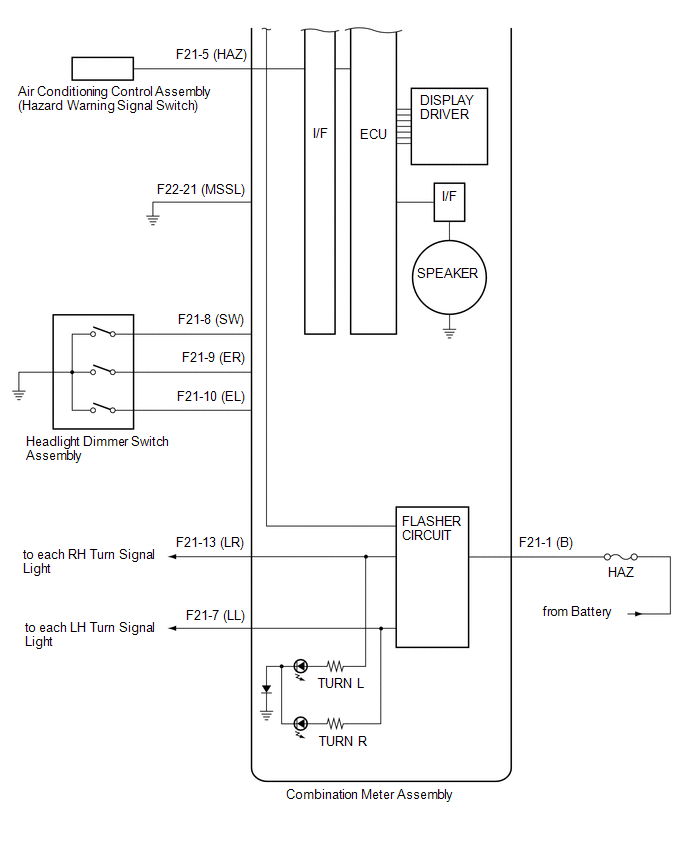

Fig 3: Meter / Gauge System Wiring Diagram (3 Of 3) (12/2013 - 11/2016)
GTY443087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
