Removal [12/2013 - ]: Procedure

  1. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the No. 1 wire adjusting nut from the No. 1 parking brake cable assembly.
      GTY432445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

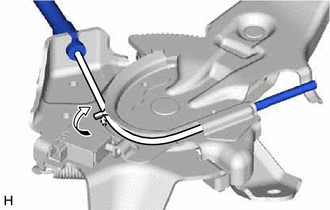

    2. Pull up the parking brake control pedal assembly claw.
      GTY432443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the No. 1 parking brake cable assembly.

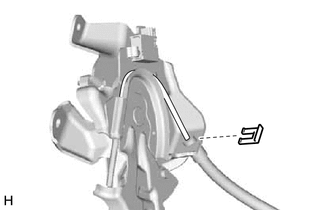

    3. Remove the clip from the No. 1 parking brake cable assembly.
      GTY432442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the No. 1 parking brake cable assembly from the parking brake control pedal assembly.
  3. SEPARATE PARKING BRAKE SHOE LEVER LH

    See step  13

  4. SEPARATE PARKING BRAKE SHOE LEVER RH

    HINT:

    Perform the same procedure as for the LH side.

  5. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

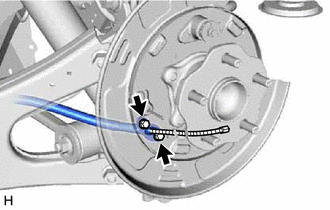

    1. Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the backing plate.
      GTY432473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

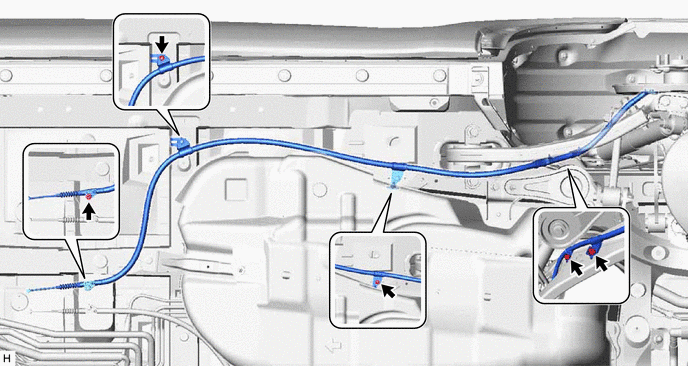

    2. Remove the 4 bolts, nut and No. 3 parking brake cable assembly.
      GTY432474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 parking brake cable support bracket, No. 2 parking brake cable support bracket and No. 2 cable support bracket from the No. 3 parking brake cable assembly.
      GTY438350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Parking Brake Cable Support Bracket *2 No. 2 Parking Brake Cable Support Bracket
      *3 No. 2 Cable Support Bracket - -
  6. REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY

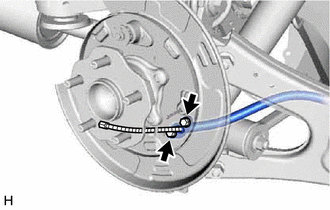

    1. Remove the 2 bolts and separate the No. 2 parking brake cable assembly from the backing plate.
      GTY432471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

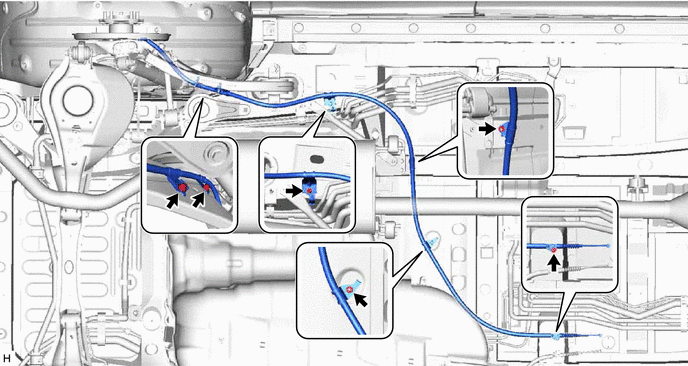

    2. Remove the 4 bolts, 2 nuts and No. 2 parking brake cable assembly.
      GTY432480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the parking brake cable support bracket, cable support bracket and No. 2 cable support bracket from the No. 2 parking brake cable assembly.
      GTY448278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Brake Cable Support Bracket *2 Cable Support Bracket
      *3 No. 2 Cable Support Bracket - -
