Installation [12/2013 - ]: Procedure

  1. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Install the No. 1 parking brake cable support bracket, No. 2 parking brake cable support bracket and No. 2 cable support bracket to the No. 3 parking brake cable assembly.
      GTY438350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Parking Brake Cable Support Bracket *2 No. 2 Parking Brake Cable Support Bracket
      *3 No. 2 Cable Support Bracket - -

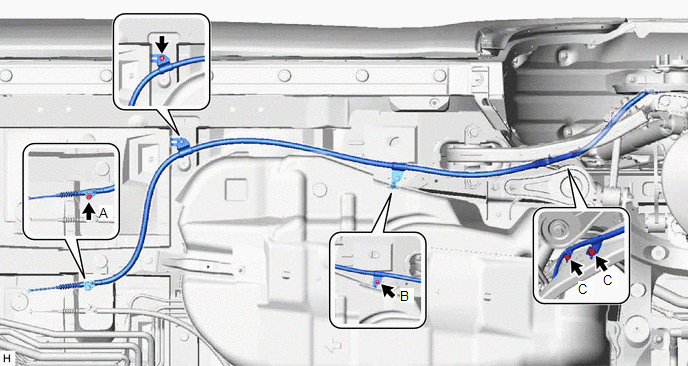

    2. Install the No. 3 parking brake cable assembly with the 4 bolts and nut.
      GTY442601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Bolt (B)

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Bolt (C)

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

      Nut

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

    3. Install the No. 3 parking brake cable assembly to the backing plate with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  2. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
    1. Install the parking brake cable support bracket, cable support bracket and No. 2 cable support bracket to the No. 2 parking brake cable assembly.
      GTY448278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Brake Cable Support Bracket *2 Cable Support Bracket
      *3 No. 2 Cable Support Bracket - -

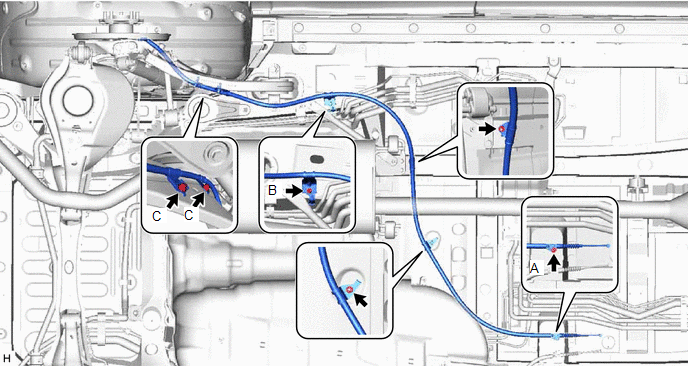

    2. Install the No. 2 parking brake cable assembly with the 4 bolts and 2 nuts.
      GTY437852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Bolt (B)

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Bolt (C)

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

      Nut

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

    3. Install the No. 2 parking brake cable assembly to the backing plate with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  3. CONNECT PARKING BRAKE SHOE LEVER LH

    See step  5

  4. CONNECT PARKING BRAKE SHOE LEVER RH

    HINT:

    Perform the same procedure as for the LH side.

  5. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
    1. Pass the No. 1 parking brake cable assembly through the parking brake control pedal assembly.
    2. Install the clip to the No. 1 parking brake cable assembly.

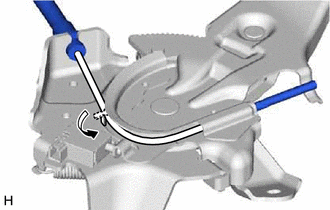

    3. Bend the parking brake control pedal assembly claw.
      GTY432501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Temporarily install the No. 1 wire adjusting nut and lock nut.
  6. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]
