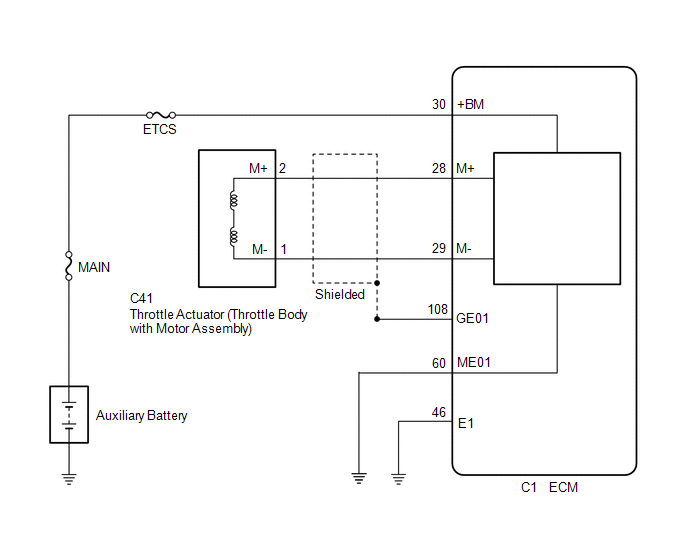

DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High [02/2014 - 11/2016]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY439602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
