Removal [12/2013 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the 2 clamps.

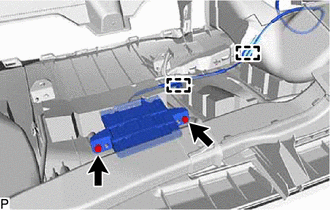

      GTY432005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and navigation antenna assembly.
