Reassembly [12/2013 - 11/2016]: Procedure

  1. INSTALL FRONT SIDE MARKER LIGHT BULB
    1. Install the front side marker light bulb to the headlight cord.
    2. Turn the headlight cord with the front side marker light bulb as shown in the illustration to connect them as a unit.

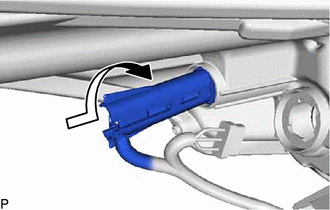

      GTY440319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT TURN SIGNAL AND PARKING LIGHT BULB
    1. Install the front turn signal and parking light bulb to the headlight cord.
    2. Turn the headlight cord with the front turn signal and parking light bulb as shown in the illustration to connect them as a unit.

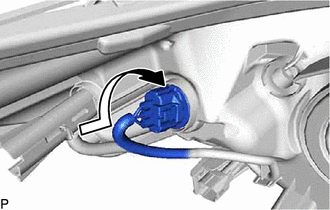

      GTY453987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 HEADLIGHT BULB
    1. Turn the No. 2 headlight bulb as shown in the illustration to install it.

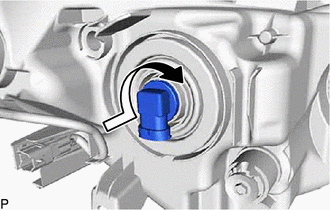

      GTY440325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.

  4. INSTALL NO. 1 HEADLIGHT BULB
    1. Turn the No. 1 headlight bulb as shown in the illustration to install it.
      GTY440322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
