Components [12/2013 - ]: Illustration

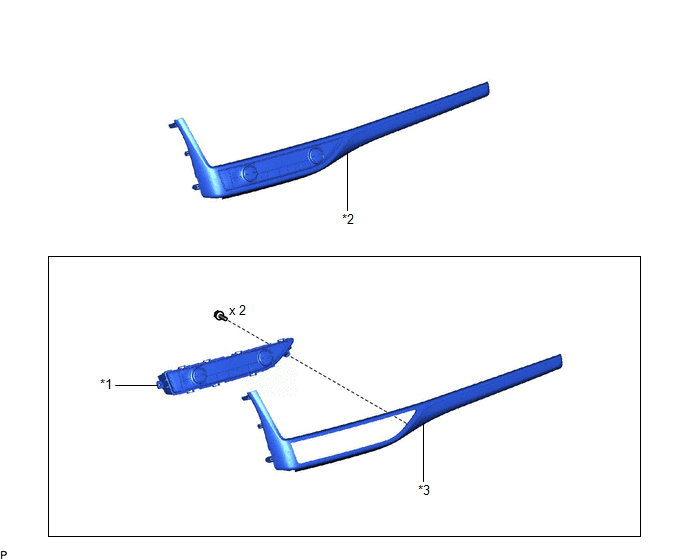

Fig 1: Hazard Warning Switch Replacement Components
GTY443570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CONDITIONING CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH) *2 CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY
*3 CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY - -
