Removal [12/2013 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 4

  6. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

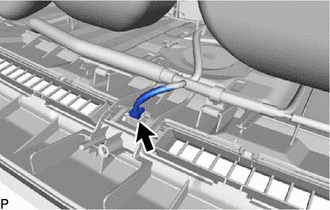

    1. Disconnect the connector.
      GTY455952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

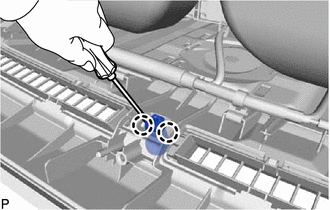

    2. Using a screwdriver, Disengage the 2 claws to remove the automatic light control sensor.
      GTY449437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
