Components [12/2013 - ]: Illustration

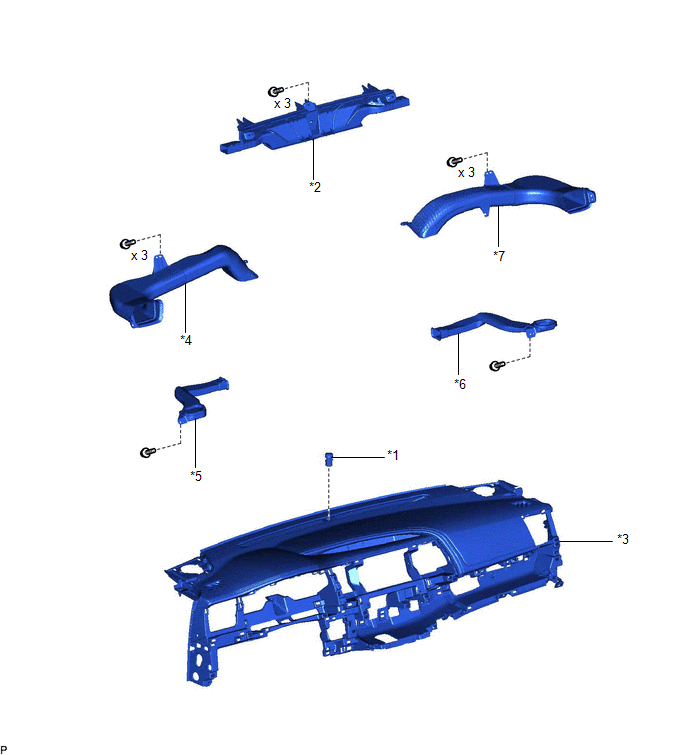

Fig 1: Automatic Light Control Sensor Replacement Components
GTY424258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTOMATIC LIGHT CONTROL SENSOR *2 DEFROSTER NOZZLE ASSEMBLY
*3 INSTRUMENT PANEL SAFETY PAD ASSEMBLY *4 NO. 1 HEATER TO REGISTER DUCT
*5 NO. 1 SIDE DEFROSTER NOZZLE DUCT *6 NO. 2 SIDE DEFROSTER NOZZLE DUCT
*7 NO. 4 HEATER TO REGISTER DUCT - -
