Installation [12/2013 - 11/2016]: Procedure

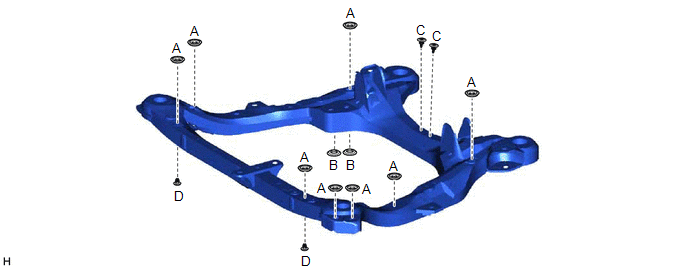

- INSTALL HOLE PLUG
- INSTALL FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH
- Temporarily install a new front suspension member body mounting rear cushion LH while confirming the installation direction.
*a View from Underneath Front of the Vehicle NOTE:Position the front suspension member body mounting rear cushion LH in the correct direction.
- Install SST as shown in the illustration.
*1 Front Suspension Member Body Mounting Rear Cushion LH - SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01030
- 09830-01060
- SST: 09830-10010
- Using SST, install the front suspension member body mounting rear cushion LH as shown in the illustration.
*a Hold *b Turn NOTE:Check that there is no clearance between the front frame assembly and the front suspension member body mounting rear cushion LH.
- Temporarily install a new front suspension member body mounting rear cushion LH while confirming the installation direction.
- INSTALL FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION RH
- Temporarily install a new front suspension member body mounting rear cushion RH while confirming the installation direction.
*a View from Underneath Front of the Vehicle NOTE:Position the front suspension member body mounting rear cushion RH in the correct direction.
- Install SST using the same procedure as for the front suspension member body mounting rear cushion LH.
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01030
- 09830-01060
- SST: 09830-10010
- Using SST, install the front suspension member body mounting rear cushion RH.
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01030
- 09830-01060
HINT:
Perform the same procedure as for the LH side.
- SST: 09830-10010
- Temporarily install a new front suspension member body mounting rear cushion RH while confirming the installation direction.
- INSTALL FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION
- Temporarily install a new front suspension member body mounting front cushion while confirming the installation direction.
*a View from Underneath Front of the Vehicle NOTE:Position the front suspension member body mounting front cushion in the correct direction.
- Install SST using the same procedure as for the front suspension member body mounting rear cushion LH.
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01030
- 09830-01060
- SST: 09830-10010
- Using SST, install each front suspension member body mounting front cushion as shown in the illustration.
*a Hold *b Turn - SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01030
- 09830-01060
NOTE:Check that there is no clearance between the front frame assembly and the front suspension member body mounting front cushion.
- SST: 09830-10010
- Temporarily install a new front suspension member body mounting front cushion while confirming the installation direction.
- INSTALL FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
- Install the 2 front suspension member body mounting rear stoppers to the front frame assembly.
- INSTALL FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER
- Install the 2 front suspension member body mounting front stoppers to the front frame assembly.

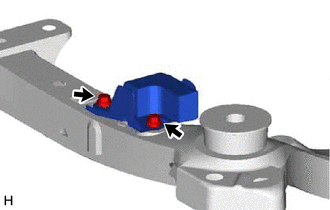

- INSTALL FRONT SUSPENSION MEMBER DYNAMIC DAMPER (for 1AR-FE)

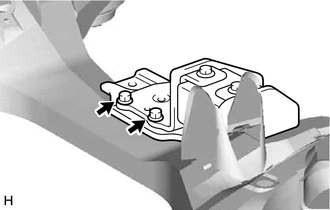

- INSTALL NO. 2 FRAME CROSSMEMBER DYNAMIC DAMPER (for 2GR-FE)
- INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
- Install the front lower No. 1 suspension arm sub-assembly LH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.
Bolt 1, 2
Torque: 200 N*m (2039 kgf*cm, 148 ft.*lbf)
Bolt 3
Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)
NOTE:Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Install the front lower No. 1 suspension arm sub-assembly LH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.
- INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL STEERING LINK ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL FRONT STABILIZER BAR
- Install the front stabilizer bar with 2 front No. 2 stabilizer brackets, 2 front No. 1 stabilizer bar bushings and 2 front stabilizer link assemblies to the front frame assembly.
- INSTALL FRONT NO. 1 STABILIZER BRACKET LH
See step 5
- INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL REAR ENGINE MOUNTING INSULATOR ASSEMBLY (for 2GR-FE)
Refer to PROCEDURE - Step 14
- INSTALL ENGINE MOUNTING INSULATOR LH
for 1AR-FE: Refer to PROCEDURE - Step 8 (INSTALLATION [12/2013 - 11/2016])
for 2GR-FE: Refer to PROCEDURE - Step 12 (INSTALLATION [12/2013 - 11/2016])
- INSTALL ENGINE MOUNTING INSULATOR RH
for 1AR-FE: Refer to PROCEDURE - Step 9 (INSTALLATION [12/2013 - 11/2016])
for 2GR-FE: Refer to PROCEDURE - Step 13 (INSTALLATION [12/2013 - 11/2016])
- INSTALL FRONT ENGINE MOUNTING INSULATOR (for 1AR-FE)
Refer to PROCEDURE - Step 7 (INSTALLATION [12/2013 - 11/2016])
- INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY (for 2GR-FE)
Refer to PROCEDURE - Step 11 (INSTALLATION [12/2013 - 11/2016])
- INSTALL FRONT FRAME ASSEMBLY
for 1AR-FE: Refer to PROCEDURE - Step 10 (INSTALLATION [12/2013 - 11/2016])
for 2GR-FE: Refer to PROCEDURE - Step 15 (INSTALLATION [12/2013 - 11/2016])
