Components [12/2013 - 11/2015]: Illustration

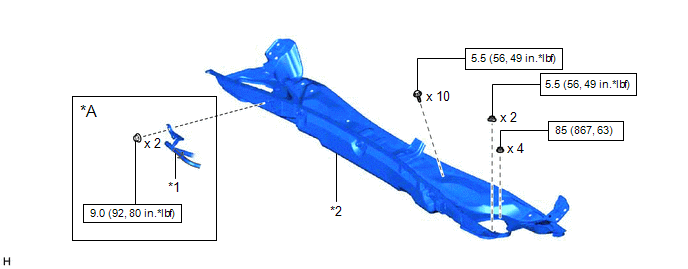

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 1AR-FE	-	-
*1	BRAKE BOOSTER VACUUM EJECTOR	*2	OUTER COWL TOP PANEL SUB-ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

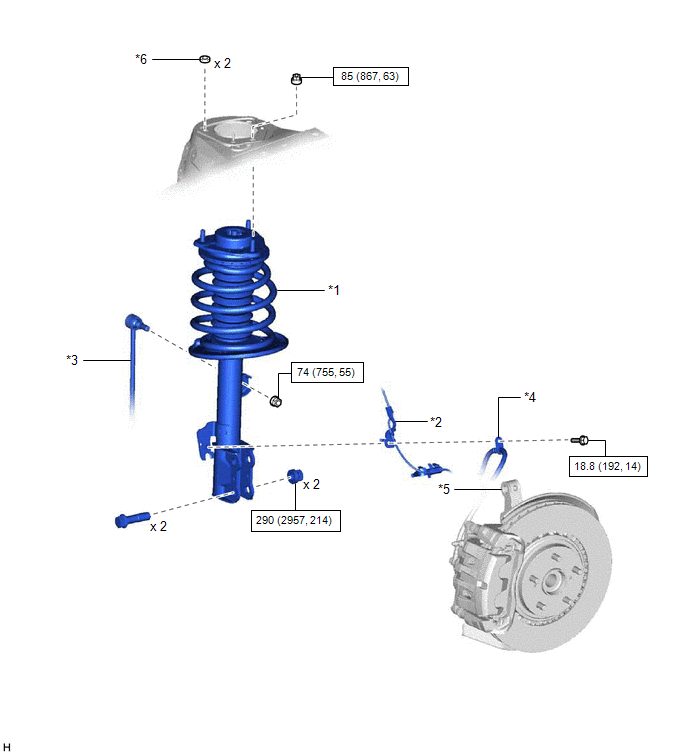

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SHOCK ABSORBER WITH COIL SPRING	*2	FRONT SPEED SENSOR
*3	FRONT STABILIZER LINK ASSEMBLY	*4	FRONT FLEXIBLE HOSE
*5	STEERING KNUCKLE	*6	SPACER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

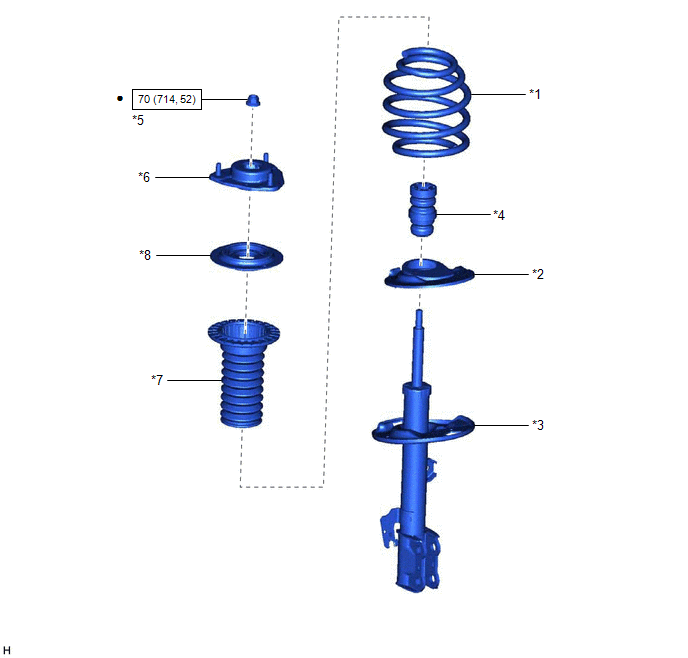

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT COIL SPRING	*2	FRONT LOWER COIL SPRING INSULATOR
*3	FRONT SHOCK ABSORBER ASSEMBLY	*4	FRONT SPRING BUMPER
*5	FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT	*6	FRONT SUSPENSION SUPPORT SUB-ASSEMBLY
*7	FRONT UPPER COIL SPRING INSULATOR	*8	STRUT MOUNTING BEARING
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
