Components [11/2015 - ]: Illustration

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
GTY448381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 1AR-FE - -
*1 BRAKE BOOSTER VACUUM EJECTOR *2 OUTER COWL TOP PANEL SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (2 Of 3)
GTY455331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SHOCK ABSORBER WITH COIL SPRING *2 FRONT SPEED SENSOR
*3 FRONT STABILIZER LINK ASSEMBLY *4 FRONT FLEXIBLE HOSE
*5 STEERING KNUCKLE *6 SPACER
N*m (kgf*cm, ft.*lbf): Specified torque - -

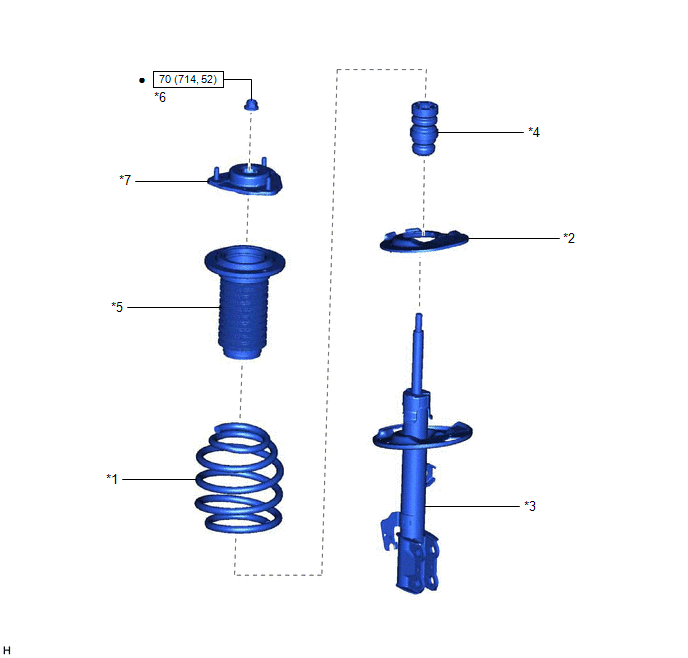

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
GTY589475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT COIL SPRING *2 FRONT LOWER COIL SPRING INSULATOR
*3 FRONT SHOCK ABSORBER ASSEMBLY *4 FRONT SPRING BUMPER
*5 FRONT SPRING SEAT SUB-ASSEMBLY WITH INSULATOR *6 FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
*7 FRONT SUSPENSION SUPPORT SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
