Home >> Toyota >> 2016 >> Highlander Limited, FWD >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension (Service Information) (Except Hybrid) >> Front Lower Ball Joint >> Components [12/2013 - ] >> Illustration

Components [12/2013 - ]: Illustration

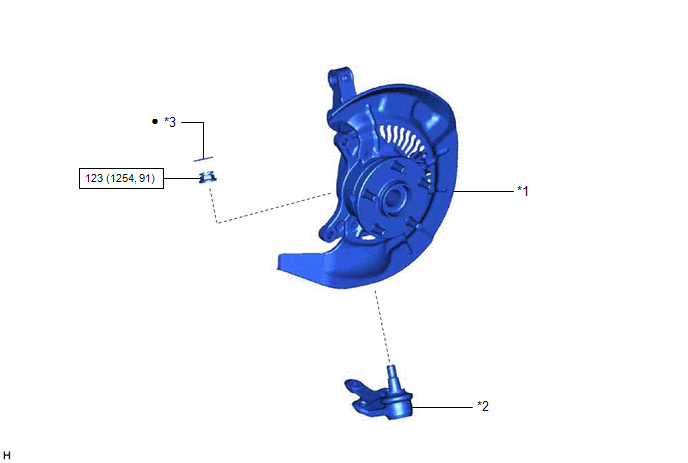

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications
GTY439631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT AXLE ASSEMBLY *2 FRONT LOWER BALL JOINT ASSEMBLY
*3 COTTER PIN - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
