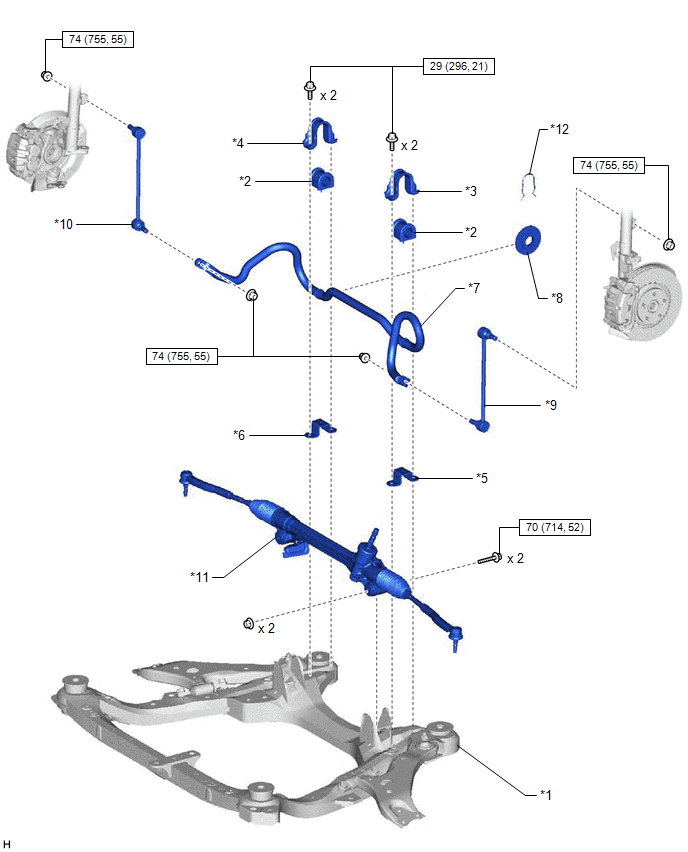

Components [11/2016 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | FRONT FRAME ASSEMBLY | *2 | FRONT NO. 1 STABILIZER BAR BUSHING |
| *3 | FRONT NO. 1 STABILIZER BRACKET LH | *4 | FRONT NO. 1 STABILIZER BRACKET RH |
| *5 | FRONT NO. 2 STABILIZER BRACKET LH | *6 | FRONT NO. 2 STABILIZER BRACKET RH |
| *7 | FRONT STABILIZER BAR | *8 | FRONT STABILIZER BAR PROTECTOR |
| *9 | FRONT STABILIZER LINK ASSEMBLY LH | *10 | FRONT STABILIZER LINK ASSEMBLY RH |
| *11 | STEERING LINK ASSEMBLY | *12 | CLIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
