Components [12/2013 - 11/2016]: Illustration

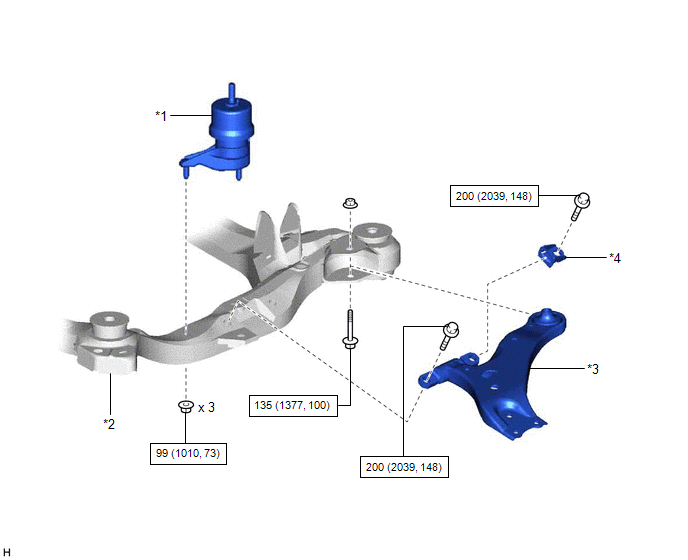

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (For 2GR-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE MOUNTING INSULATOR	*2	FRONT FRAME ASSEMBLY
*3	FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY	*4	FRONT LOWER ARM BUSHING STOPPER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
