Components [12/2013 - ]: Illustration

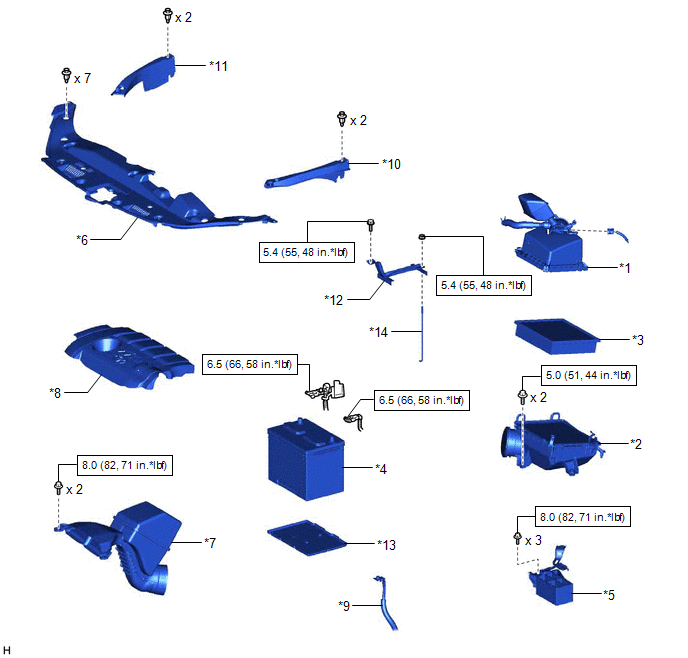

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (For 1AR-FE) (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | BATTERY |
| *5 | BATTERY BRACKET SUB-ASSEMBLY | *6 | COOL AIR INTAKE DUCT SEAL |
| *7 | INLET AIR CLEANER ASSEMBLY | *8 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *9 | NO. 2 ENGINE WIRE | *10 | RADIATOR SIDE DEFLECTOR SEAL LH |
| *11 | RADIATOR SIDE SEAL RH | *12 | BATTERY CLAMP |
| *13 | BATTERY TRAY | *14 | BATTERY CLAMP BOLT |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *A | for LH Side | *B | for RH Side |

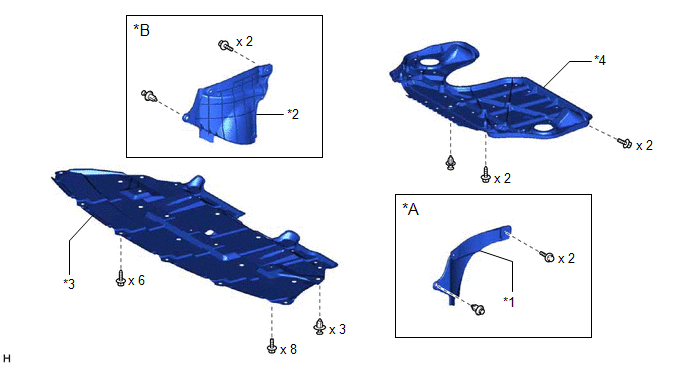

| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER APRON SEAL RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER |

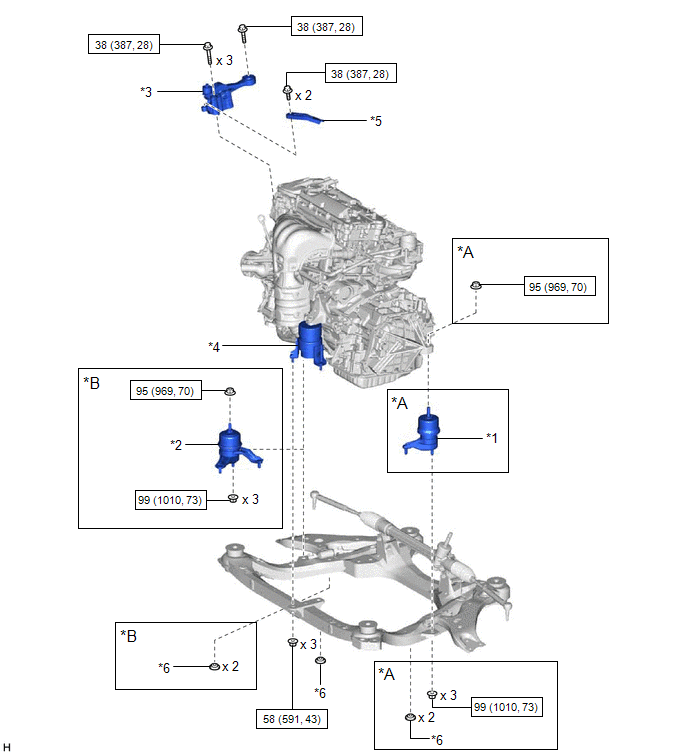

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (For 1AR-FE) (3 Of 5)
| Callout | Description | Callout | Description |
| *A | for LH Side | *B | for RH Side |
| *1 | ENGINE MOUNTING INSULATOR LH | *2 | ENGINE MOUNTING INSULATOR RH |
| *3 | ENGINE MOVING CONTROL ROD BRACKET | *4 | FRONT ENGINE MOUNTING INSULATOR |
| *5 | NO. 2 ENGINE MOUNTING STAY RH | *6 | HOLE PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (For 1AR-FE) (4 Of 5)

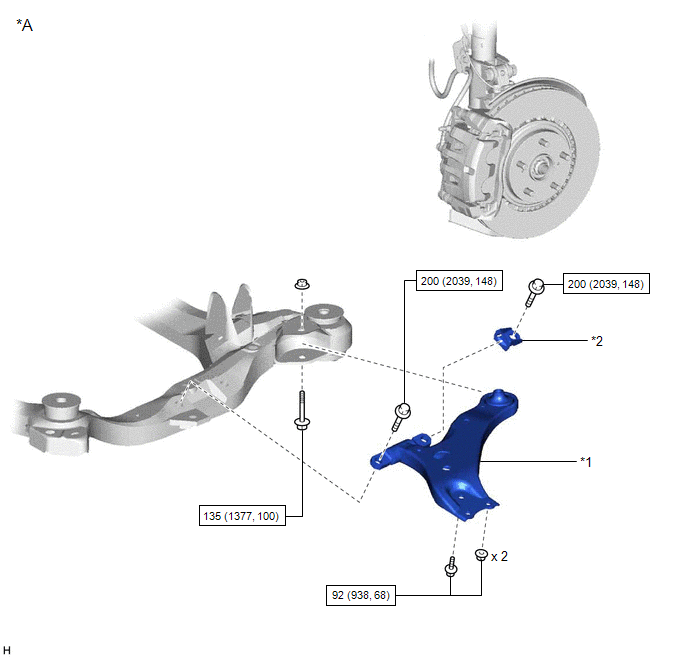

| Callout | Description | Callout | Description |
| *A | for LH Side | - | - |
| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH | *2 | FRONT LOWER ARM BUSHING STOPPER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications (For 1AR-FE) (5 Of 5)
| Callout | Description | Callout | Description |
| *A | for RH Side | - | - |

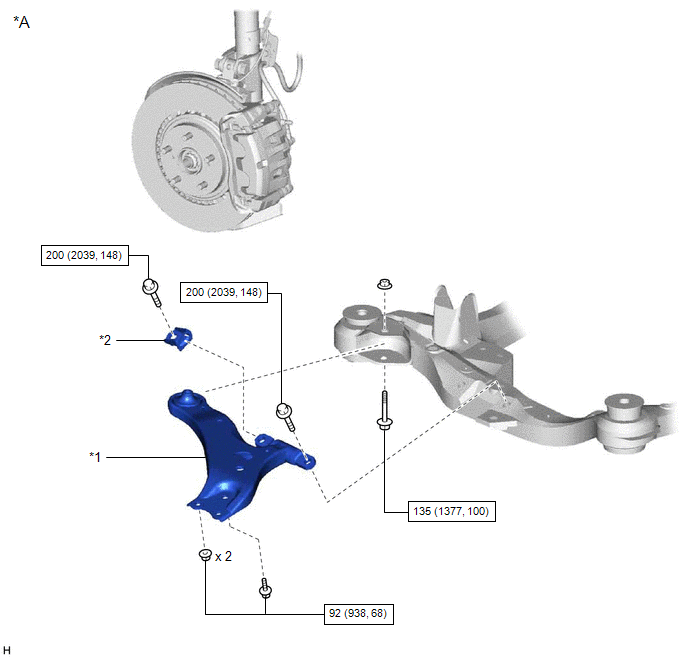

| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH | *2 | FRONT LOWER ARM BUSHING STOPPER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
