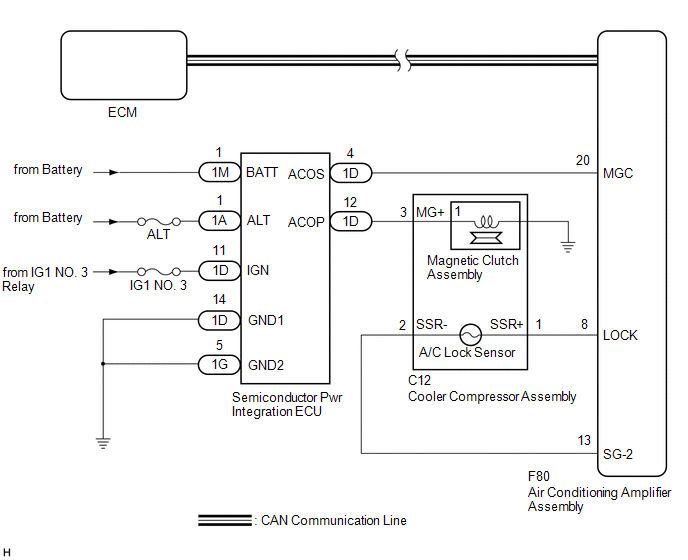

DTC B1422: Compressor Lock Sensor Circuit [11/2016 - ]: Wiring Diagram

GTY727608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
