Installation [02/2014 - 11/2016]: Procedure

HINT:

Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

Refer to INITIALIZATION [02/2014 - 11/2016]

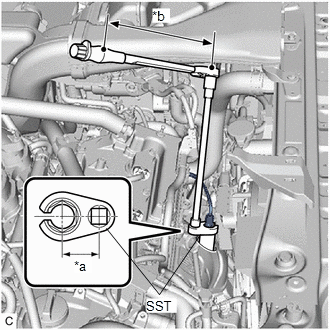

1. Using SST, install the air fuel ratio sensor to the exhaust manifold sub-assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Length of SST 30 mm (1.18 in.)
   *b	Length of Torque Wrench 260 mm (10.2 in.)

   • SST: 09224-00010

   without SST [Torque (N*m (kgf*cm, ft.*lbf))]

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

   HINT:

   • This torque value is effective when SST is parallel to the torque wrench.
   • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
   • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).
   • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

     Refer to PRECAUTION [02/2014 - 11/2016]

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 12

HINT:

Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

Refer to INITIALIZATION [02/2014 - 11/2016]

1. Using SST, install the air fuel ratio sensor to the exhaust manifold sub-assembly LH.
   • SST: 09224-00010

   without SST [Torque (N*m (kgf*cm, ft.*lbf))]

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

   HINT:

   • This torque value is effective when SST is parallel to the torque wrench.
   • The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
   • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).
   • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

     Refer to PRECAUTION [02/2014 - 11/2016]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Length of SST 30 mm (1.18 in.)
   *b	Length of Torque Wrench 260 mm (10.2 in.)

2. Connect the air fuel ratio sensor connector.
3. Engage the wire harness clamp.

Refer to PROCEDURE - Step 14

1. Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

   Refer to INITIALIZATION [02/2014 - 11/2016]
