Replacement [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.

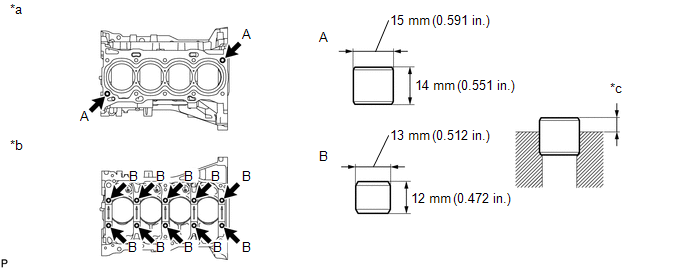

- REPLACE RING PIN
NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- Remove the 12 ring pins.
- Using a plastic hammer, install 12 new ring pins.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Upper Side |
*b |
Lower Side |
| *c |
Protrusion Height |
- |
- |
Standard Protrusion Height
| Item |
Specified Condition |
| A |
5.0 to 7.0 mm (0.197 to 0.276 in.) |
| B |
4.0 to 7.0 mm (0.157 to 0.276 in.) |

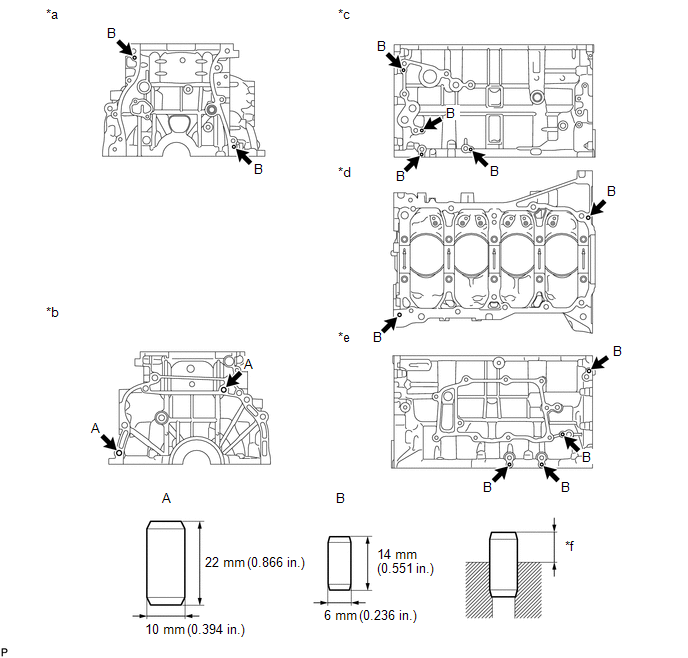

- REPLACE STRAIGHT PIN
NOTE:
It is not necessary to remove the straight pin unless it is being replaced.
- Remove the 14 straight pins.
- Using a plastic hammer, install 14 new straight pins.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Front Side |
*b |
Rear Side |
| *c |
LH Side |
*d |
Lower Side |
| *e |
RH Side |
*f |
Protrusion Height |
Standard Protrusion Height
| Item |
Specified Condition |
| A |
11.0 to 13.0 mm (0.433 to 0.512 in.) |
| B |
5.0 to 7.0 mm (0.197 to 0.276 in.) |
