Removal [02/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE WASHER NOZZLE SUB-ASSEMBLY

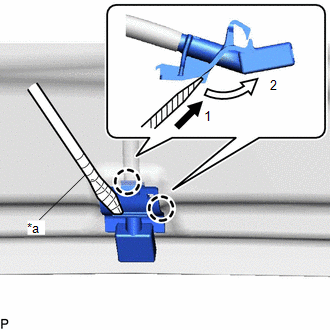

- Using a screwdriver, disengage the 2 claws as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
*a Protective Tape NOTE:Be careful not to damage the windshield glass.
HINT:
- Tape the screwdriver tip before use.
- Use the same procedure for the LH side and RH side.
- Remove the washer nozzle sub-assembly from the washer hose.NOTE:
Washer nozzle sub-assemblies cannot be reused.
- Using a screwdriver, disengage the 2 claws as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
